The Ultimate Guide to Thrust Bearings
Thrust bearings are used to support thrust loads or axial loads applied to a shaft. Thrust bearings are divided into several categories based on rolling elements: balls, cylindrical rollers, Single Direction and Double Direction thrust bearings that can withstand axial load and radial load. Thrust bearings are available in a variety of design types and configurations to suit a variety of load capacities and applications. Ball thrust bearing series are available in inch, ISO metric and angular contact series. Single Direction inch and metric series thrust bearings are capable of handling relatively light loads in one direction, while angular contact series thrust bearings can handle a combination of radial and thrust loads in one or both directions. Cylindrical roller thrust bearing series include inch, metric, and self-aligning series, with one-way and two-way series respectively. The use of cylindrical roller designs provides greater thrust load capacity than ball thrust bearings of the same size. This greater capacity makes thrust bearings suitable for a wide range of applications and industries. Aubearing’s tapered roller thrust bearings have high load capacity and are suitable for many applications that require heavy thrust loads. This article describes the various types of thrust bearings, their basic designs, and their general applications.
Table of Contents
ToggleHow do thrust bearings work?

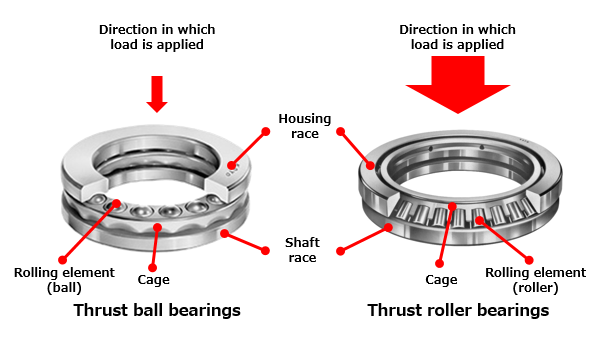

Thrust bearings, also called axial thrust bearings, can withstand axial loads. These loads are loads parallel to the axis in the machine. The two main components of a thrust bearing are the bearing housing and the rolling elements. The housing remains stationary and attached to the machine. The rolling elements rotate with the shaft. The rolling elements of a thrust bearing can be spherical or cylindrical (roller) shaped and made of metal or plastic. When a bearing is subjected to an axial load, the bearing distributes the load on its surface, allowing the shaft to rotate smoothly without excessive friction and wear. Since the thrust bearing is a detachable design, its maintenance method and cost are relatively simple. This means individual components can be removed and replaced. Therefore, thrust bearings can be repaired without replacing the entire bearing. Thrust bearings are used in a variety of mechanical systems, from automotive engines to industrial equipment, aerospace and other systems. Required for many high speed, high load applications with axial loads.
Thrust bearing type
Thrust ball bearings and thrust roller bearings overlap in their application suitability. Therefore, determining which bearing is best for an application can be complex. To help machinists choose a better thrust bearing, Aubearing explains the different types of thrust bearings, descriptions and general use cases.
Thrust ball bearings are designed to carry thrust loads in one direction and are divided into ISO metric and inch series. Thrust ball bearings are separate bearings, including a shaft ring (matched with the journal), a seat ring (matched with the bearing seat), a set of steel balls and a cage. During installation, it can be easily matched with the journal and bearing seat respectively. In some low-speed applications, a complete set of balls without a cage is used to increase thrust capability. Ball thrust bearings are a good choice when lighter thrust load applications are encountered. Thrust ball bearings are dimensionally interchangeable with other bearing manufacturers and, in the case of the ISO series, they are dimensionally interchangeable through the base series part number. When applications require greater accuracy, thrust ball bearings can be manufactured to P5 accuracy. Thrust ball bearings include one-way thrust ball bearings, two-way thrust ball bearings, and angular contact thrust ball bearings according to different structures.

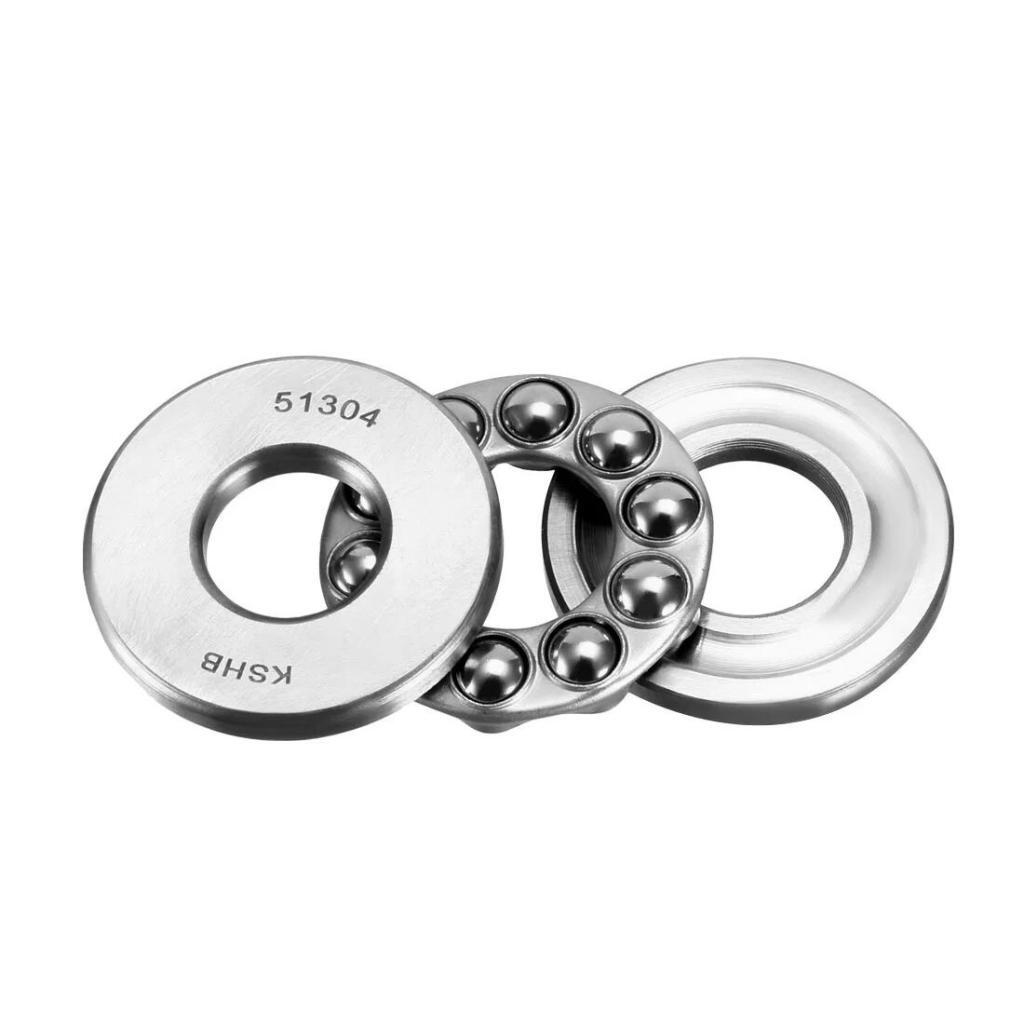

Single Direction Thrust Ball Bearing consists of a shaft ring, a bearing race, and a ball and cage thrust assembly. The bearings are of separable construction, so installation is simple because the washers and ball and cage assemblies can be installed separately. There are two types of small one-way thrust ball bearings, with flat seats or with self-aligning seats. Bearings with self-aligning seat washers can be used with self-aligning seat washers to compensate for angular misalignment between the support surface in the housing and the shaft.
Part Number | Seal Type | Bore Dia | Outer Dia | Height | Washer Material | Dynamic Thrust Load | Static Thrust Load | Weight |
510/1000 M | Open | 1000 mm | 1090 mm | 70 mm | 52100 Chrome Steel | 128591 lbf | 1236449 lbf | 68.5 kg |
510/1060 M | Open | 1060 mm | 1150 mm | 70 mm | 52100 Chrome Steel | 128591 lbf | 1315132 lbf | 72.5 kg |
510/500 F | Open | 500 mm | 540 mm | 30 mm | 52100 Chrome Steel | 299 lbf | 251786 lbf | 6.55 kg |
510/530 F | Open | 530 mm | 580 mm | 38 mm | 52100 Chrome Steel | 45636 lbf | 359694 lbf | 11 kg |
510/560 F | Open | 560 mm | 610 mm | 38 mm | 52100 Chrome Steel | 45636 lbf | 373183 lbf | 11.5 kg |
510/600 F | Open | 600 mm | 650 mm | 38 mm | 52100 Chrome Steel | 47659 lbf | 404656 lbf | 12 kg |
510/630 F | Open | 630 mm | 680 mm | 38 mm | 52100 Chrome Steel | 49683 lbf | 433881 lbf | 12.5 kg |
510/710 F | Open | 710 mm | 780 mm | 53 mm | 52100 Chrome Steel | 80482 lbf | 640705 lbf | 28 kg |
510/750 F | Open | 750 mm | 820 mm | 53 mm | 52100 Chrome Steel | 8183 lbf | 685667 lbf | 30 kg |
510/800 F | Open | 800 mm | 870 mm | 53 mm | 52100 Chrome Steel | 83404 lbf | 719389 lbf | 32.5 kg |
510/850 M | Open | 850 mm | 920 mm | 53 mm | 52100 Chrome Steel | 84753 lbf | 775591 lbf | 34.5 kg |
510/900 M | Open | 900 mm | 980 mm | 63 mm | 52100 Chrome Steel | 118474 lbf | 1101564 lbf | 49 kg |
510/950 M | Open | 950 mm | 1080 mm | 63 mm | 52100 Chrome Steel | 121397 lbf | 1146526 lbf | 52 kg |
51080 F | Open | 400 mm | 440 mm | 30 mm | 52100 Chrome Steel | 27876 lbf | 202328 lbf | 5.35 kg |
51084 F | Open | 420 mm | 460 mm | 30 mm | 52100 Chrome Steel | 28101 lbf | 197832 lbf | 5.6 kg |
51088 F | Open | 440 mm | 480 mm | 30 mm | 52100 Chrome Steel | 28551 lbf | 2057 lbf | 5.85 kg |
51092 F | Open | 460 mm | 500 mm | 30 mm | 52100 Chrome Steel | 29225 lbf | 233801 lbf | 6.4 kg |
51096 F | Open | 480 mm | 520 mm | 30 mm | 52100 Chrome Steel | 299 lbf | 224809 lbf | 6.5 kg |
511/1000 F | Open | 1000 mm | 1180 mm | 140 mm | 52100 Chrome Steel | 298996 lbf | 2967478 lbf | 275 kg |
511/1060 M | Open | 1060 mm | 1250 mm | 150 mm | 52100 Chrome Steel | 321477 lbf | 3372134 lbf | 330 kg |
511/1120 F | Open | 1120 mm | 1320 mm | 160 mm | 52100 Chrome Steel | 343958 lbf | 3664386 lbf | 395 kg |
511/1180 F | Open | 1180 mm | 1400 mm | 175 mm | 52100 Chrome Steel | 40016 lbf | 4496179 lbf | 495 kg |
511/1400 F | Open | 1400 mm | 1630 mm | 180 mm | 52100 Chrome Steel | 409152 lbf | 4945797 lbf | 665 kg |
511/500 F | Open | 500 mm | 600 mm | 80 mm | 52100 Chrome Steel | 124319 lbf | 809312 lbf | 47 kg |
511/530 F | Open | 530 mm | 640 mm | 85 mm | 52100 Chrome Steel | 146126 lbf | 989159 lbf | 58.5 kg |
511/560 F | Open | 560 mm | 670 mm | 85 mm | 52100 Chrome Steel | 146126 lbf | 1045362 lbf | 61 kg |
511/600 F | Open | 600 mm | 710 mm | 85 mm | 52100 Chrome Steel | 149048 lbf | 1079083 lbf | 65 kg |
511/630 F | Open | 630 mm | 750 mm | 95 mm | 52100 Chrome Steel | 163661 lbf | 1213968 lbf | 84 kg |
511/670 F | Open | 670 mm | 800 mm | 105 mm | 52100 Chrome Steel | 191537 lbf | 150622 lbf | 105 kg |
511/670 M | Open | 670 mm | 800 mm | 105 mm | 52100 Chrome Steel | 191537 lbf | 150622 lbf | 105 kg |
511/710 F | Open | 710 mm | 850 mm | 112 mm | 52100 Chrome Steel | 210421 lbf | 1719788 lbf | 130 kg |
511/750 M | Open | 750 mm | 900 mm | 120 mm | 52100 Chrome Steel | 227057 lbf | 1944597 lbf | 155 kg |
511/850 F | Open | 850 mm | 1000 mm | 120 mm | 52100 Chrome Steel | 238297 lbf | 2135685 lbf | 165 kg |
511/900 F | Open | 900 mm | 1060 mm | 130 mm | 52100 Chrome Steel | 251786 lbf | 2338013 lbf | 205 kg |
511/900 M | Open | 900 mm | 1060 mm | 130 mm | 52100 Chrome Steel | 251786 lbf | 2338013 lbf | 213 kg |
511/950 F | Open | 950 mm | 1120 mm | 135 mm | 52100 Chrome Steel | 298996 lbf | 2697707 lbf | 235 kg |
51100 | Open | 10 mm | 24 mm | 9 mm | 52100 Chrome Steel | 1958 lbf | 2743 lbf | 0.02 kg |
51101 | Open | 12 mm | 26 mm | 9 mm | 52100 Chrome Steel | 2338 lbf | 3732 lbf | 0.022 kg |
51102 | Open | 15 mm | 28 mm | 9 mm | 52100 Chrome Steel | 2383 lbf | 4114 lbf | 0.023 kg |
51103 | Open | 17 mm | 30 mm | 9 mm | 52100 Chrome Steel | 2563 lbf | 4766 lbf | 0.025 kg |
51104 | Open | 20 mm | 35 mm | 10 mm | 52100 Chrome Steel | 3395 lbf | 6519 lbf | 0.037 kg |
51105 | Open | 25 mm | 42 mm | 11 mm | 52100 Chrome Steel | 4092 lbf | 8768 lbf | 0.056 kg |
51106 | Open | 30 mm | 47 mm | 11 mm | 52100 Chrome Steel | 4271 lbf | 9667 lbf | 0.063 kg |
51107 | Open | 35 mm | 52 mm | 12 mm | 52100 Chrome Steel | 4474 lbf | 11465 lbf | 0.08 kg |
51108 | Open | 40 mm | 60 mm | 13 mm | 52100 Chrome Steel | 5733 lbf | 14163 lbf | 0.12 kg |
51109 | Open | 45 mm | 65 mm | 14 mm | 52100 Chrome Steel | 5957 lbf | 15624 lbf | 0.14 kg |
51110 | Open | 50 mm | 70 mm | 14 mm | 52100 Chrome Steel | 607 lbf | 16861 lbf | 0.16 kg |
51111 | Open | 55 mm | 78 mm | 16 mm | 52100 Chrome Steel | 6789 lbf | 18322 lbf | 0.23 kg |
51112 | Open | 60 mm | 85 mm | 17 mm | 52100 Chrome Steel | 9352 lbf | 27427 lbf | 0.27 kg |
51113 | Open | 65 mm | 90 mm | 18 mm | 52100 Chrome Steel | 8475 lbf | 24279 lbf | 0.33 kg |
51114 | Open | 70 mm | 95 mm | 18 mm | 52100 Chrome Steel | 906 lbf | 26977 lbf | 0.35 kg |
51115 | Open | 75 mm | 100 mm | 19 mm | 52100 Chrome Steel | 9937 lbf | 30124 lbf | 0.4 kg |
51116 | Open | 80 mm | 105 mm | 19 mm | 52100 Chrome Steel | 10094 lbf | 31473 lbf | 0.42 kg |
51117 | Open | 85 mm | 110 mm | 19 mm | 52100 Chrome Steel | 10094 lbf | 32822 lbf | 0.44 kg |
51118 | Open | 90 mm | 120 mm | 22 mm | 52100 Chrome Steel | 13309 lbf | 4676 lbf | 0.67 kg |
51120 | Open | 100 mm | 135 mm | 25 mm | 52100 Chrome Steel | 1812 lbf | 59574 lbf | 0.97 kg |
51122 | Open | 110 mm | 145 mm | 25 mm | 52100 Chrome Steel | 18704 lbf | 64071 lbf | 1.05 kg |
51124 | Open | 120 mm | 155 mm | 25 mm | 52100 Chrome Steel | 19154 lbf | 68567 lbf | 1.15 kg |
51126 | Open | 130 mm | 170 mm | 30 mm | 52100 Chrome Steel | 26752 lbf | 98916 lbf | 1.85 kg |
51128 | Open | 140 mm | 180 mm | 31 mm | 52100 Chrome Steel | 24954 lbf | 98916 lbf | 2.05 kg |
51130 M | Open | 150 mm | 190 mm | 31 mm | 52100 Chrome Steel | 24954 lbf | 98916 lbf | 2.2 kg |
51132 M | Open | 160 mm | 200 mm | 31 mm | 52100 Chrome Steel | 25179 lbf | 104536 lbf | 2.35 kg |
51134 M | Open | 170 mm | 215 mm | 34 mm | 52100 Chrome Steel | 299 lbf | 121397 lbf | 3.3 kg |
51136 M | Open | 180 mm | 225 mm | 34 mm | 52100 Chrome Steel | 30349 lbf | 128141 lbf | 3.5 kg |
51138 M | Open | 190 mm | 240 mm | 37 mm | 52100 Chrome Steel | 38667 lbf | 159614 lbf | 4.05 kg |
51140 M | Open | 200 mm | 250 mm | 37 mm | 52100 Chrome Steel | 37768 lbf | 159614 lbf | 4.25 kg |
51144 M | Open | 220 mm | 270 mm | 37 mm | 52100 Chrome Steel | 40016 lbf | 179847 lbf | 4.6 kg |
51148 M | Open | 240 mm | 300 mm | 45 mm | 52100 Chrome Steel | 52605 lbf | 233801 lbf | 7.55 kg |
51152 M | Open | 260 mm | 320 mm | 45 mm | 52100 Chrome Steel | 53505 lbf | 24729 lbf | 8.1 kg |
51156 M | Open | 280 mm | 350 mm | 53 mm | 52100 Chrome Steel | 71714 lbf | 328221 lbf | 12 kg |
51160 M | Open | 300 mm | 380 mm | 62 mm | 52100 Chrome Steel | 8183 lbf | 395664 lbf | 17.5 kg |
51164 M | Open | 320 mm | 400 mm | 63 mm | 52100 Chrome Steel | 83404 lbf | 418145 lbf | 19 kg |
51168 M | Open | 340 mm | 420 mm | 64 mm | 52100 Chrome Steel | 84753 lbf | 440626 lbf | 20.5 kg |
51172 F | Open | 360 mm | 440 mm | 65 mm | 52100 Chrome Steel | 87675 lbf | 467603 lbf | 22 kg |
51176 F | Open | 380 mm | 460 mm | 65 mm | 52100 Chrome Steel | 89249 lbf | 49458 lbf | 23 kg |
51180 F | Open | 400 mm | 480 mm | 65 mm | 52100 Chrome Steel | 90598 lbf | 512564 lbf | 24 kg |
51184 F | Open | 420 mm | 500 mm | 65 mm | 52100 Chrome Steel | 92172 lbf | 539541 lbf | 25.5 kg |
51188 F | Open | 440 mm | 540 mm | 80 mm | 52100 Chrome Steel | 118474 lbf | 730629 lbf | 42 kg |
51192 F | Open | 460 mm | 560 mm | 80 mm | 52100 Chrome Steel | 118474 lbf | 730629 lbf | 43.5 kg |
51196 F | Open | 480 mm | 580 mm | 80 mm | 52100 Chrome Steel | 121397 lbf | 798072 lbf | 45.5 kg |
512/500 F | Open | 500 mm | 670 mm | 135 mm | 52100 Chrome Steel | 227057 lbf | 1528701 lbf | 135 kg |
51200 | Open | 10 mm | 26 mm | 11 mm | 52100 Chrome Steel | 2855 lbf | 4181 lbf | 0.03 kg |
51201 | Open | 12 mm | 28 mm | 11 mm | 52100 Chrome Steel | 299 lbf | 4676 lbf | 0.034 kg |
51202 | Open | 15 mm | 32 mm | 12 mm | 52100 Chrome Steel | 3574 lbf | 562 lbf | 0.046 kg |
51203 | Open | 17 mm | 35 mm | 12 mm | 52100 Chrome Steel | 3664 lbf | 607 lbf | 0.053 kg |
51204 | Open | 20 mm | 40 mm | 14 mm | 52100 Chrome Steel | 4766 lbf | 843 lbf | 0.083 kg |
51205 | Open | 25 mm | 47 mm | 15 mm | 52100 Chrome Steel | 5957 lbf | 1124 lbf | 0.11 kg |
51206 | Open | 30 mm | 52 mm | 16 mm | 52100 Chrome Steel | 5643 lbf | 11465 lbf | 0.13 kg |
51207 | Open | 35 mm | 62 mm | 18 mm | 52100 Chrome Steel | 7891 lbf | 16523 lbf | 0.22 kg |
51208 | Open | 40 mm | 68 mm | 19 mm | 52100 Chrome Steel | 9937 lbf | 21694 lbf | 0.28 kg |
51209 | Open | 45 mm | 73 mm | 20 mm | 52100 Chrome Steel | 8768 lbf | 19446 lbf | 0.3 kg |
51210 | Open | 50 mm | 78 mm | 22 mm | 52100 Chrome Steel | 11106 lbf | 26078 lbf | 0.37 kg |
51211 | Open | 55 mm | 90 mm | 25 mm | 52100 Chrome Steel | 13151 lbf | 30124 lbf | 0.59 kg |
51212 | Open | 60 mm | 95 mm | 26 mm | 52100 Chrome Steel | 13309 lbf | 31473 lbf | 0.65 kg |
51213 | Open | 65 mm | 100 mm | 27 mm | 52100 Chrome Steel | 13601 lbf | 33721 lbf | 0.72 kg |
51214 | Open | 70 mm | 105 mm | 27 mm | 52100 Chrome Steel | 14028 lbf | 35969 lbf | 0.79 kg |
51215 | Open | 75 mm | 110 mm | 27 mm | 52100 Chrome Steel | 1432 lbf | 38218 lbf | 0.83 kg |
51216 | Open | 80 mm | 115 mm | 28 mm | 52100 Chrome Steel | 17108 lbf | 4676 lbf | 0.91 kg |
51217 | Open | 85 mm | 125 mm | 31 mm | 52100 Chrome Steel | 21919 lbf | 61822 lbf | 1.2 kg |
51218 | Open | 90 mm | 135 mm | 35 mm | 52100 Chrome Steel | 25179 lbf | 65195 lbf | 1.7 kg |
Double Direction Thrust Ball Bearing consists of three parts: a shaft ring, two seat rings and two steel ball-cage assemblies. The bearing is separate and each part can be installed independently. The weighing shaft ring matched with the shaft can bear the axial load in two directions and can fix the machine shaft in both directions. Such bearings must not bear any delivery radial loads. Thrust ball bearings also have a structure with a seat cushion. Since the mounting surface of the seat cushion is spherical, the bearing has self-aligning performance and can reduce the impact of installation errors.
Part Number | Bore Dia | Outer Dia | Height | Ball Material | Cage Material | Dynamic Thrust Load | Static Thrust Load | Weight |
52202 | 10 mm | 32 mm | 22 mm | 52100 Chrome Steel | Steel | 3574 lbf | 562 lbf | 0.081 kg |
52204 | 15 mm | 40 mm | 26 mm | 52100 Chrome Steel | Steel | 4766 lbf | 843 lbf | 0.15 kg |
52205 | 20 mm | 47 mm | 28 mm | 52100 Chrome Steel | Steel | 5957 lbf | 1124 lbf | 0.22 kg |
52206 | 25 mm | 52 mm | 29 mm | 52100 Chrome Steel | Steel | 5643 lbf | 11465 lbf | 0.25 kg |
52207 | 30 mm | 62 mm | 34 mm | 52100 Chrome Steel | Steel | 7891 lbf | 16523 lbf | 0.41 kg |
52208 | 30 mm | 68 mm | 36 mm | 52100 Chrome Steel | Steel | 9937 lbf | 21694 lbf | 0.55 kg |
52209 | 35 mm | 73 mm | 37 mm | 52100 Chrome Steel | Steel | 8768 lbf | 19446 lbf | 0.6 kg |
52210 | 40 mm | 78 mm | 39 mm | 52100 Chrome Steel | Steel | 11106 lbf | 26078 lbf | 0.71 kg |
52211 | 45 mm | 90 mm | 45 mm | 52100 Chrome Steel | Steel | 13151 lbf | 30124 lbf | 1.1 kg |
52212 | 50 mm | 95 mm | 46 mm | 52100 Chrome Steel | Steel | 13309 lbf | 31473 lbf | 1.2 kg |
52213 | 55 mm | 100 mm | 47 mm | 52100 Chrome Steel | Steel | 13601 lbf | 33721 lbf | 1.35 kg |
52215 | 60 mm | 110 mm | 47 mm | 52100 Chrome Steel | Steel | 1432 lbf | 38218 lbf | 1.55 kg |
52216 | 65 mm | 115 mm | 48 mm | 52100 Chrome Steel | Steel | 17108 lbf | 4676 lbf | 1.7 kg |
52217 | 70 mm | 125 mm | 55 mm | 52100 Chrome Steel | Steel | 21919 lbf | 61822 lbf | 2.4 kg |
52218 | 75 mm | 135 mm | 62 mm | 52100 Chrome Steel | Steel | 25179 lbf | 65195 lbf | 3.2 kg |
52220 | 85 mm | 150 mm | 67 mm | 52100 Chrome Steel | Steel | 26752 lbf | 73063 lbf | 4.2 kg |
52222 | 95 mm | 160 mm | 67 mm | 52100 Chrome Steel | Steel | 28101 lbf | 82055 lbf | 4.65 kg |
52224 | 100 mm | 170 mm | 68 mm | 52100 Chrome Steel | Steel | 28551 lbf | 87675 lbf | 5.25 kg |
52226 | 110 mm | 190 mm | 80 mm | 52100 Chrome Steel | Steel | 40915 lbf | 131513 lbf | 8 kg |
52228 | 120 mm | 200 mm | 81 mm | 52100 Chrome Steel | Steel | 48559 lbf | 150622 lbf | 8.65 kg |
52230 M | 130 mm | 215 mm | 89 mm | 52100 Chrome Steel | Steel | 55528 lbf | 179847 lbf | 11.5 kg |
52232 M | 140 mm | 225 mm | 90 mm | 52100 Chrome Steel | Steel | 55528 lbf | 179847 lbf | 11.4 kg |
52234 M | 150 mm | 240 mm | 97 mm | 52100 Chrome Steel | Steel | 63171 lbf | 220313 lbf | 15 kg |
52305 | 20 mm | 52 mm | 34 mm | 52100 Chrome Steel | Steel | 7756 lbf | 13489 lbf | 0.33 kg |
52306 | 25 mm | 60 mm | 38 mm | 52100 Chrome Steel | Steel | 8048 lbf | 14725 lbf | 0.47 kg |
52307 | 30 mm | 68 mm | 44 mm | 52100 Chrome Steel | Steel | 11106 lbf | 21694 lbf | 0.68 kg |
52308 | 30 mm | 78 mm | 49 mm | 52100 Chrome Steel | Steel | 13893 lbf | 27427 lbf | 1.05 kg |
52309 | 35 mm | 85 mm | 52 mm | 52100 Chrome Steel | Steel | 17108 lbf | 34396 lbf | 1.25 kg |
52310 | 40 mm | 95 mm | 58 mm | 52100 Chrome Steel | Steel | 18412 lbf | 38218 lbf | 1.75 kg |
52311 | 45 mm | 105 mm | 64 mm | 52100 Chrome Steel | Steel | 22706 lbf | 50357 lbf | 2.4 kg |
52312 | 50 mm | 110 mm | 64 mm | 52100 Chrome Steel | Steel | 22706 lbf | 50357 lbf | 2.55 kg |
52313 | 55 mm | 115 mm | 64 mm | 52100 Chrome Steel | Steel | 2383 lbf | 53954 lbf | 2.75 kg |
52314 | 55 mm | 125 mm | 72 mm | 52100 Chrome Steel | Steel | 30349 lbf | 71939 lbf | 3.65 kg |
52315 | 60 mm | 135 mm | 79 mm | 52100 Chrome Steel | Steel | 36644 lbf | 87675 lbf | 4.8 kg |
52316 | 65 mm | 140 mm | 79 mm | 52100 Chrome Steel | Steel | 35745 lbf | 87675 lbf | 4.94 kg |
52320 | 85 mm | 170 mm | 97 mm | 52100 Chrome Steel | Steel | 50582 lbf | 128141 lbf | 8.95 kg |
52406 | 20 mm | 70 mm | 52 mm | 52100 Chrome Steel | Steel | 15782 lbf | 27427 lbf | 1 kg |
52407 | 25 mm | 80 mm | 59 mm | 52100 Chrome Steel | Steel | 17108 lbf | 30799 lbf | 1.45 kg |
52408 | 30 mm | 90 mm | 65 mm | 52100 Chrome Steel | Steel | 21492 lbf | 4114 lbf | 2.05 kg |
52409 | 35 mm | 100 mm | 72 mm | 52100 Chrome Steel | Steel | 27876 lbf | 53954 lbf | 2.7 kg |
52411 | 45 mm | 120 mm | 87 mm | 52100 Chrome Steel | Steel | 43838 lbf | 89924 lbf | 4.7 kg |
52412 M | 50 mm | 130 mm | 93 mm | 52100 Chrome Steel | Steel | 44737 lbf | 96668 lbf | 6.35 kg |
52414 M | 55 mm | 250 mm | 107 mm | 52100 Chrome Steel | Steel | 52605 lbf | 123645 lbf | 9.7 kg |
54207 | 30 mm | 62 mm | 37.8 mm | 52100 Chrome Steel | Steel | 7891 lbf | 16523 lbf | 0.53 kg |
54209 | 35 mm | 73 mm | 39.6 mm | 52100 Chrome Steel | Steel | 8768 lbf | 19446 lbf | 0.78 kg |
54211 | 45 mm | 90 mm | 49.6 mm | 52100 Chrome Steel | Steel | 13151 lbf | 30124 lbf | 1.3 kg |
54306 | 25 mm | 60 mm | 41.3 mm | 52100 Chrome Steel | Steel | 8048 lbf | 14725 lbf | 0.58 kg |
54307 | 30 mm | 68 mm | 47.2 mm | 52100 Chrome Steel | Steel | 11106 lbf | 21694 lbf | 0.85 kg |
54308 | 30 mm | 78 mm | 54.1 mm | 52100 Chrome Steel | Steel | 13893 lbf | 27427 lbf | 1.17 kg |
54309 | 35 mm | 85 mm | 56.2 mm | 52100 Chrome Steel | Steel | 17108 lbf | 34396 lbf | 1.6 kg |
54310 | 40 mm | 95 mm | 64.7 mm | 52100 Chrome Steel | Steel | 18412 lbf | 38218 lbf | 2.3 kg |
54312 | 50 mm | 110 mm | 70.7 mm | 52100 Chrome Steel | Steel | 22706 lbf | 50357 lbf | 2.9 kg |
54317 | 70 mm | 150 mm | 95.2 mm | 52100 Chrome Steel | Steel | 39117 lbf | 91048 lbf | 7.95 kg |
54409 | 35 mm | 100 mm | 78.9 mm | 52100 Chrome Steel | Steel | 27876 lbf | 53954 lbf | 3 kg |
54410 | 40 mm | 110 mm | 83.2 mm | 52100 Chrome Steel | Steel | 33272 lbf | 68567 lbf | 4.45 kg |
54416 M | 65 mm | 170 mm | 128.5 mm | 52100 Chrome Steel | Steel | 69016 lbf | 168607 lbf | 17.5 kg |
54420 M | 80 mm | 210 mm | 159.9 mm | 52100 Chrome Steel | Steel | 83404 lbf | 238297 lbf | 29 kg |

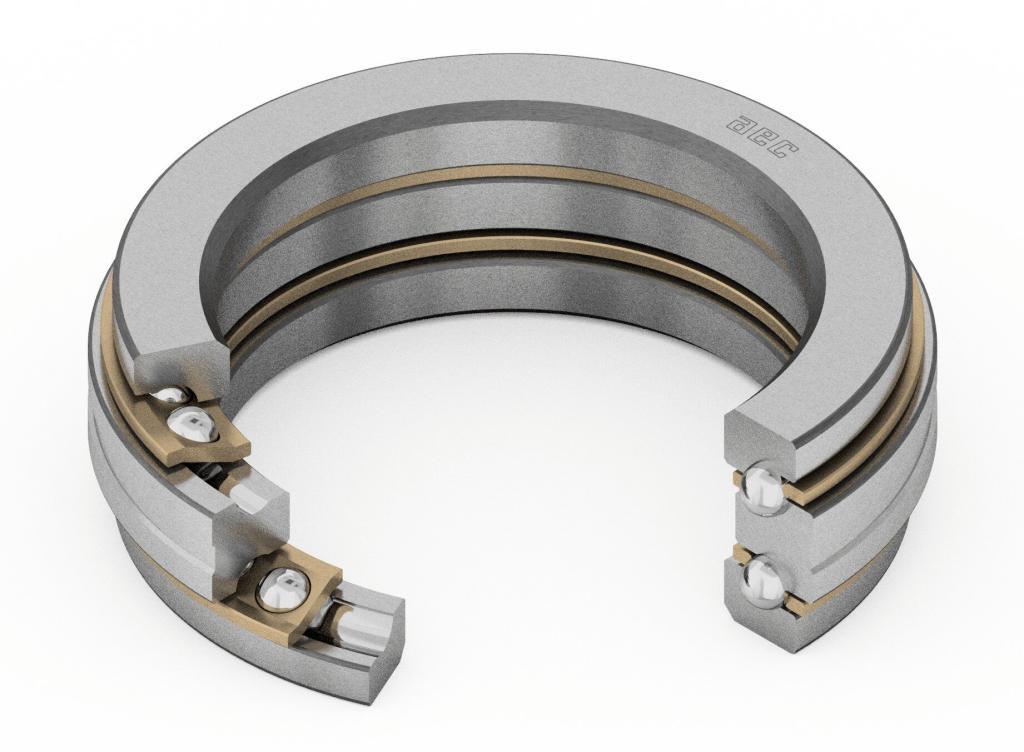

Angular contact thrust ball bearings
Angular contact ball thrust bearings are designed to bear radial loads and thrust loads, and their large thrust carrying capacity is the main design feature. These bearings are of the imperial series and typically have a contact angle of approximately 50 degrees. Angular contact ball thrust bearings consist of a hardened and ground angular contact plate (with dowel holes for mounting) and a brass cage with precision balls. Single-way angular thrust ball bearings handle these loads in one direction, while double-way angular thrust ball bearings handle these loads in both directions. This design is primarily used at the bottom of vertical shaft applications to withstand large thrust loads while providing center alignment to the shaft.

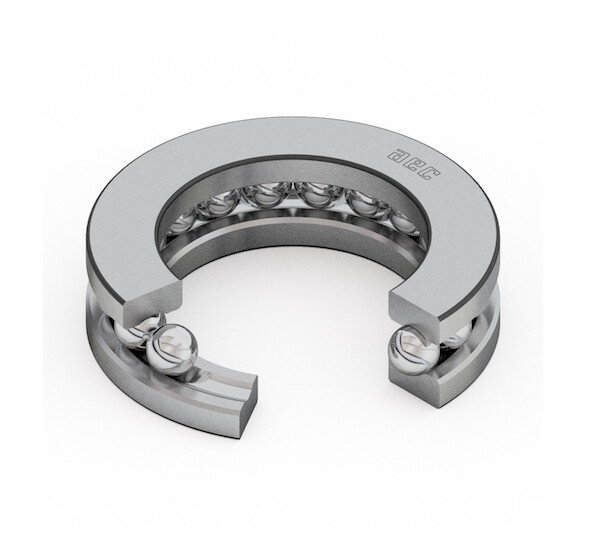

Full complement thrust ball bearings
There is no cage in the full complement thrust ball bearing. This allows balls to be placed between the raceways. Therefore, full complement thrust ball bearings can withstand higher axial loads, but the maximum speed is lower and the friction between the balls creates greater rotational torque. Full complement ball bearings are mainly used in heavy-duty applications since they can withstand high axial loads. For example, large cranes, heavy equipment, ship steering equipment, aircraft landing equipment, etc.
Thrust roller bearing
Thrust roller bearings are bearings with rollers as rolling elements. According to the shape of the rollers, thrust roller bearings can be divided into thrust cylindrical bearings, thrust tapered bearings and thrust needle roller bearings. Thrust needle roller bearings use slender needle rollers, thrust cylindrical bearings use cylindrical rollers, and thrust tapered bearings use conical rollers. Thrust roller bearings are used to bear combined shaft and radial loads where axial load is the main component, but the radial load shall not exceed 55% of the axial load.

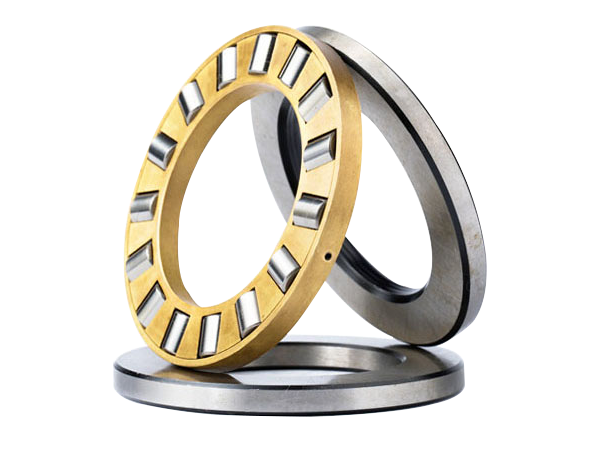

Thrust cylindrical roller bearings
Tapered roller thrust bearings are designed to provide large thrust capabilities and can be unidirectional or bidirectional. They can withstand medium to heavy combined radial and axial loads. Cylindrical rollers also reduce friction and heat generation. Thrust cylindrical roller bearings have a much greater increase in thrust capacity than ball thrust bearings. Thrust cylindrical bearings consist of two hardened, precision-ground caps, precision-ground rollers and cage bands that secure the rollers. The thrust plate’s inside and outside diameters are precision ground for proper installation. Cylindrical roller thrust bearings are available in metric ISO series and inch series, both series are interchangeable. Applications for cylindrical thrust roller bearings include extruders, screw presses, rock crushers, coal mills, lathe tailstocks and oil field equipment.

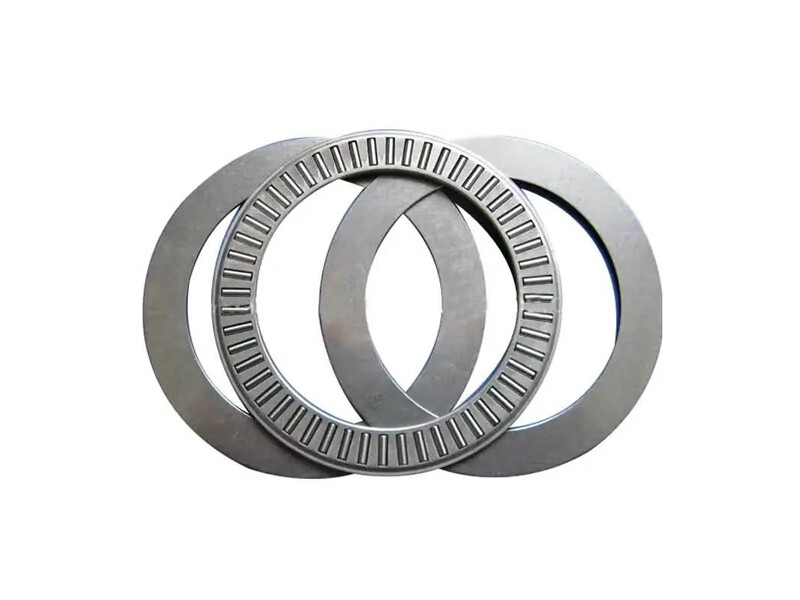

The needle rollers of thrust needle roller bearings have a small diameter and are shaped like needles. Thrust needle roller bearings consist of an outer ring, an inner ring, a flange inserted into the contour and small diameter needle rollers. Small-diameter needle rollers can disperse axial loads while having high stiffness and load-bearing capacity. Thrust needle roller bearings are suitable for applications where space is limited. Thrust needle roller bearings are suitable for high-speed axial load requirements and can be used in CNC machine tool spindles, instruments, motors and other equipment. The disadvantage is that the number of needle rollers is small, which can easily lead to excessive rolling element clearance and short service life.
Part Number | Bore Dia | Outer Dia | Thickness | Needle Material | Dynamic Thrust Load | Static Thrust Load | Max Speed (X1000 rpm) |
AXK0414-TV | 4 mm | 14 mm | 2 mm | Steel | 989 lbf | 1798 lbf | 21.5 |
AXK0515-TV | 5 mm | 15 mm | 2 mm | Steel | 1068 lbf | 2068 lbf | 20.6 |
AXK0619-TV | 6 mm | 19 mm | 2 mm | Steel | 1529 lbf | 3485 lbf | 18.9 |
AXK0821-TV | 8 mm | 21 mm | 2 mm | Steel | 1754 lbf | 4361 lbf | 17.8 |
AXK100135 | 100 mm | 135 mm | 4 mm | Steel | 20458 lbf | 125893 lbf | 2.4 |
AXK1024 | 10 mm | 24 mm | 2 mm | Steel | 2068 lbf | 5733 lbf | 16.9 |
AXK110145 | 110 mm | 145 mm | 4 mm | Steel | 21806 lbf | 139382 lbf | 2.2 |
AXK120155 | 120 mm | 155 mm | 4 mm | Steel | 22931 lbf | 15287 lbf | 2.1 |
AXK1226 | 12 mm | 26 mm | 2 mm | Steel | 2226 lbf | 6519 lbf | 15.2 |
AXK130170 | 130 mm | 170 mm | 5 mm | Steel | 299 lbf | 18884 lbf | 1.9 |
AXK140180 | 140 mm | 180 mm | 5 mm | Steel | 31024 lbf | 202328 lbf | 1.8 |
AXK150190 | 150 mm | 190 mm | 5 mm | Steel | 32148 lbf | 215817 lbf | 1.7 |
AXK1528 | 15 mm | 28 mm | 2 mm | Steel | 254 lbf | 8093 lbf | 13.2 |
AXK160200 | 160 mm | 200 mm | 5 mm | Steel | 33272 lbf | 229305 lbf | 1.6 |
AXK1730 | 17 mm | 30 mm | 2 mm | Steel | 2675 lbf | 888 lbf | 12.1 |
AXK2035 | 20 mm | 35 mm | 2 mm | Steel | 2945 lbf | 10454 lbf | 10.5 |
AXK2542 | 25 mm | 42 mm | 2 mm | Steel | 3305 lbf | 13039 lbf | 8.4 |
AXK3047 | 30 mm | 47 mm | 2 mm | Steel | 3664 lbf | 15737 lbf | 7.3 |
AXK3552 | 35 mm | 52 mm | 2 mm | Steel | 4002 lbf | 1821 lbf | 6.5 |
AXK4060 | 40 mm | 60 mm | 3 mm | Steel | 6295 lbf | 25628 lbf | 5.6 |
AXK4565 | 45 mm | 65 mm | 3 mm | Steel | 6744 lbf | 28776 lbf | 5.1 |
AXK5070 | 50 mm | 70 mm | 3 mm | Steel | 7194 lbf | 32148 lbf | 4.7 |
AXK5578 | 55 mm | 78 mm | 3 mm | Steel | 8543 lbf | 41814 lbf | 4.3 |
AXK6085 | 60 mm | 85 mm | 3 mm | Steel | 10004 lbf | 52605 lbf | 3.9 |
AXK6590 | 65 mm | 90 mm | 3 mm | Steel | 10454 lbf | 57326 lbf | 3.7 |
AXK7095 | 70 mm | 95 mm | 4 mm | Steel | 1214 lbf | 57326 lbf | 3.5 |
AXK75100 | 75 mm | 100 mm | 4 mm | Steel | 12364 lbf | 59574 lbf | 3.3 |
AXK80105 | 80 mm | 105 mm | 4 mm | Steel | 12589 lbf | 62947 lbf | 3.1 |
AXK85110 | 85 mm | 110 mm | 4 mm | Steel | 13039 lbf | 65195 lbf | 3 |
AXK90120 | 90 mm | 120 mm | 4 mm | Steel | 16411 lbf | 91048 lbf | 2.7 |
AXW10 | 10 mm | 27 mm | 3.2 mm | Steel | 2068 lbf | 5733 lbf | 16.9 |
AXW12 | 12 mm | 29 mm | 3.2 mm | Steel | 2226 lbf | 6519 lbf | 15.2 |
AXW15 | 15 mm | 31 mm | 3.2 mm | Steel | 254 lbf | 8093 lbf | 13.2 |
AXW17 | 17 mm | 33 mm | 3.2 mm | Steel | 2675 lbf | 888 lbf | 12.1 |
AXW20 | 20 mm | 38 mm | 3.2 mm | Steel | 2945 lbf | 10454 lbf | 10.5 |
AXW25 | 25 mm | 45 mm | 3.2 mm | Steel | 3305 lbf | 13039 lbf | 8.4 |
AXW30 | 30 mm | 50 mm | 3.2 mm | Steel | 3664 lbf | 15737 lbf | 7.3 |
AXW35 | 35 mm | 55 mm | 3.2 mm | Steel | 4002 lbf | 1821 lbf | 6.5 |
AXW40 | 40 mm | 63 mm | 4.2 mm | Steel | 6295 lbf | 25628 lbf | 5.6 |
AXW45 | 45 mm | 68 mm | 4.2 mm | Steel | 6744 lbf | 28776 lbf | 5.1 |
AXW50 | 50 mm | 73 mm | 4.2 mm | Steel | 7194 lbf | 32148 lbf | 4.7 |
TC1018 | 0.625″ | 1.125″ | 0.078″ | Steel | 2158 lbf | 6632 lbf | 13 |
TC1220 | 0.75″ | 1.25″ | 0.078″ | Steel | 2405 lbf | 7981 lbf | 11.3 |
TC1423 | 0.875″ | 1.438″ | 0.078″ | Steel | 2878 lbf | 10454 lbf | 9.8 |
TC1427 | 0.875″ | 1.688″ | 0.078″ | Steel | 4406 lbf | 18659 lbf | 8.9 |
TC1625 | 1″ | 1.563″ | 0.078″ | Steel | 3125 lbf | 1214 lbf | 8.9 |
TC1726 | 1.0625″ | 1.625″ | 0.078″ | Steel | 3395 lbf | 13713 lbf | 8.4 |
TC1828 | 1.125″ | 1.75″ | 0.078″ | Steel | 3844 lbf | 16411 lbf | 7.9 |
TC2031 | 1.25″ | 1.938″ | 0.078″ | Steel | 4474 lbf | 20458 lbf | 7.1 |
TC2233 | 1.375″ | 2.063″ | 0.078″ | Steel | 4564 lbf | 21582 lbf | 6.6 |
TC2435 | 1.5″ | 2.188″ | 0.078″ | Steel | 4833 lbf | 2383 lbf | 6.1 |
TC2840 | 1.75″ | 2.5″ | 0.078″ | Steel | 5598 lbf | 30124 lbf | 5.2 |
TC3244 | 2″ | 2.75″ | 0.078″ | Steel | 562 lbf | 32597 lbf | 4.1 |
TC3648 | 2.25″ | 3″ | 0.078″ | Steel | 607 lbf | 3507 lbf | 4.4 |
TC4052 | 2.5″ | 3.25″ | 0.078″ | Steel | 6182 lbf | 37768 lbf | 4 |
TC411 | 0.25″ | 0.688″ | 0.078″ | Steel | 1371 lbf | 299 lbf | 19.2 |
TC4860 | 3″ | 3.75″ | 0.078″ | Steel | 6632 lbf | 42714 lbf | 3.4 |
TC512 | 0.3125″ | 0.75″ | 0.078″ | Steel | 1551 lbf | 3642 lbf | 18 |
TC5266 | 3.25″ | 4.125″ | 0.126″ | Steel | 10903 lbf | 60698 lbf | 2.6 |
TC613 | 0.375″ | 0.813″ | 0.078″ | Steel | 1596 lbf | 3979 lbf | 17.4 |
TC815 | 0.5″ | 0.938″ | 0.078″ | Steel | 1911 lbf | 5305 lbf | 15.8 |

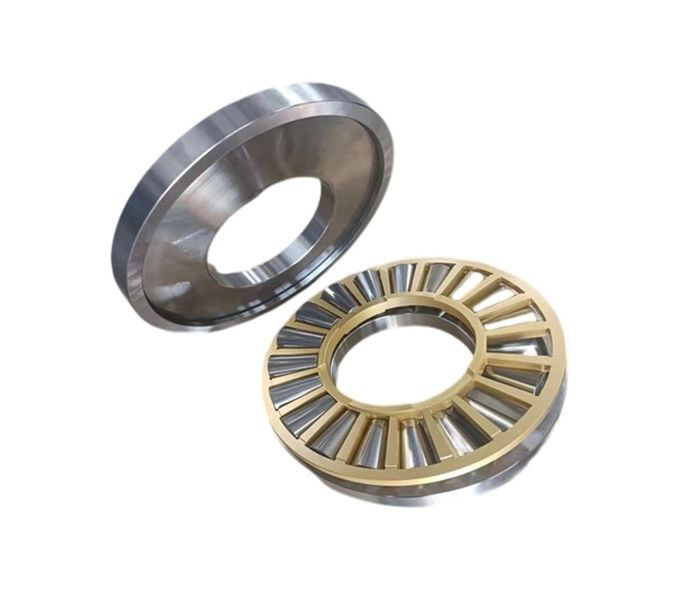

Thrust tapered roller bearings can form a very compact bearing arrangement in the axial direction. This kind of bearing can withstand heavy axial loads, is not sensitive to impact loads, and has good rigidity.
Type T tapered roller thrust bearings are designed with a cage and roller assembly and two identical thrust plates. The rollers have a common apex that allows for true rolling motion within the thrust plate. The tapered roller thrust bearing design also allows the use of rollers and therefore higher load carrying capacity. In this type of full complement bearing, adding rollers provides greater thrust capability. The added rollers increase friction within the bearing, making it suitable for low-speed applications. Our tapered roller thrust bearings are ideal for applications where high thrust loads and heavy shock loads may be encountered, such as crane hooks. Other vertical shaft applications include rock crushers and pulverized coal equipment.
Double-acting tapered roller thrust bearings VVFT are designed to handle thrust loads in either direction. The use of two tapered V-plates, a flat center plate and two tapered roller assemblies enables the bearing to handle the high thrust loads inherent to rolled steel bars and the structural shape. In this application, thrust bearings are complemented by four-row cylindrical roller bearings AD-D to handle radial loads or roller separation forces.

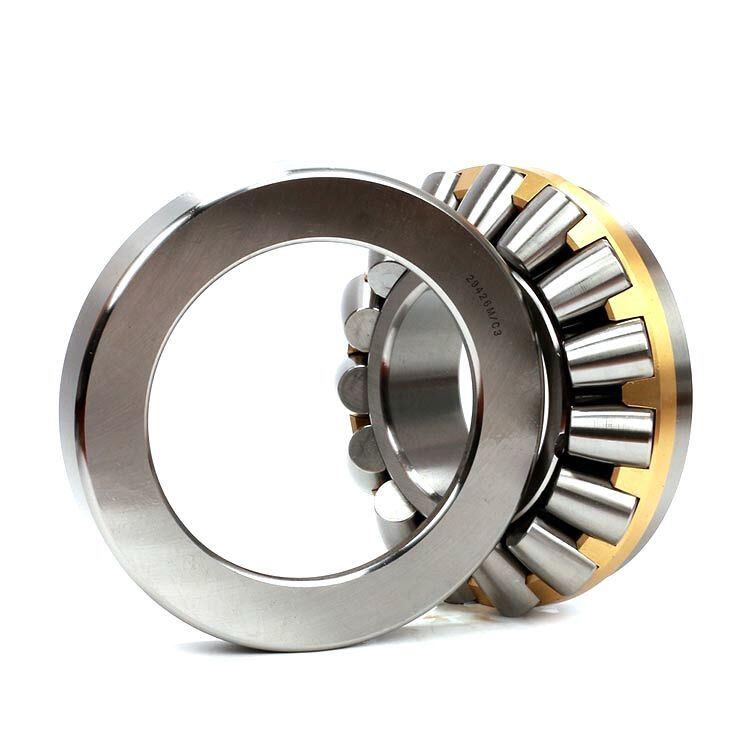

Thrust spherical roller bearing is a kind of separation bearing. Its load action line has a certain angle with the bearing axis. Therefore, it has a good self-aligning function and the allowable angle error is 2-3 degrees. However, the allowable angular error decreases as the load applied to the bearing increases, and it can bear both axial and radial loads. It can be used in extremely heavy load situations and can run at high speeds. In order to prevent harmful slippage of the rollers and raceways during the bearing adjustment operation, a certain minimum axial load must be applied to the bearing. Spherical roller thrust bearings require less maintenance due to their low coefficient of friction. These bearings can operate at relatively high speeds due to the cage design and the consistency between the rollers and washers.
Part Number | Bore Dia | Outer Dia | Height | Outside Diameter(d1) | Roller Material | Dynamic Thrust Load | Static Thrust Load | Weight |
292/500 | 500 mm | 670 mm | 103 mm | 654 mm | Steel | 537293 lbf | 2810112 lbf | 100 kg |
292/530 EM | 530 mm | 710 mm | 109 mm | 675 mm | Steel | 699156 lbf | 3439577 lbf | 115 kg |
292/560 | 560 mm | 750 mm | 115 mm | 732 mm | Steel | 672179 lbf | 3596943 lbf | 140 kg |
292/600 EM | 600 mm | 800 mm | 122 mm | 760 mm | Steel | 840785 lbf | 4181446 lbf | 170 kg |
292/630 EM | 630 mm | 850 mm | 132 mm | 810 mm | Steel | 1072339 lbf | 5305491 lbf | 210 kg |
292/800 EM | 800 mm | 1060 mm | 155 mm | 1010 mm | Steel | 1474747 lbf | 7755909 lbf | 380 kg |
29230 E | 150 mm | 215 mm | 39 mm | 200 mm | Steel | 91722 lbf | 359694 lbf | 4.3 kg |
29236 E | 180 mm | 250 mm | 42 mm | 234 mm | Steel | 11128 lbf | 45861 lbf | 5.8 kg |
29240 E | 200 mm | 280 mm | 48 mm | 260 mm | Steel | 147475 lbf | 595744 lbf | 9.3 kg |
29244 E | 220 mm | 300 mm | 48 mm | 280 mm | Steel | 155118 lbf | 674427 lbf | 10 kg |
29248 | 240 mm | 340 mm | 60 mm | 330 mm | Steel | 179622 lbf | 775591 lbf | 16.5 kg |
29252 | 260 mm | 360 mm | 60 mm | 350 mm | Steel | 183669 lbf | 820553 lbf | 18.5 kg |
29256 | 280 mm | 380 mm | 60 mm | 370 mm | Steel | 19401 lbf | 899236 lbf | 19.5 kg |
29260 | 300 mm | 420 mm | 73 mm | 405 mm | Steel | 240546 lbf | 1079083 lbf | 30.5 kg |
29264 | 320 mm | 440 mm | 73 mm | 430 mm | Steel | 249538 lbf | 1146526 lbf | 33 kg |
29268 | 340 mm | 460 mm | 73 mm | 445 mm | Steel | 254034 lbf | 1213968 lbf | 33.5 kg |
29272 | 360 mm | 500 mm | 85 mm | 485 mm | Steel | 328221 lbf | 1528701 lbf | 52 kg |
29276 | 380 mm | 520 mm | 85 mm | 505 mm | Steel | 355198 lbf | 1719788 lbf | 53 kg |
29280 | 400 mm | 540 mm | 85 mm | 526 mm | Steel | 361942 lbf | 1798472 lbf | 55.5 kg |
29284 | 420 mm | 580 mm | 95 mm | 564 mm | Steel | 44737 lbf | 2203128 lbf | 75.5 kg |
29288 | 440 mm | 600 mm | 95 mm | 585 mm | Steel | 465355 lbf | 2338013 lbf | 78 kg |
29292 | 460 mm | 620 mm | 95 mm | 605 mm | Steel | 465355 lbf | 2382975 lbf | 81 kg |
29296 | 480 mm | 650 mm | 103 mm | 635 mm | Steel | 528301 lbf | 2652746 lbf | 98 kg |
293/500 | 500 mm | 750 mm | 150 mm | 725 mm | Steel | 1009392 lbf | 4586102 lbf | 235 kg |
293/530 EM | 530 mm | 800 mm | 160 mm | 741 mm | Steel | 1319629 lbf | 5957437 lbf | 265 kg |
293/630 EM | 630 mm | 950 mm | 190 mm | 880 mm | Steel | 1899636 lbf | 854274 lbf | 485 kg |
293/710 EM | 710 mm | 1060 mm | 212 mm | 985 mm | Steel | 2236849 lbf | 10228807 lbf | 610 kg |
293/800 EM | 800 mm | 1180 mm | 230 mm | 1099 mm | Steel | 2540341 lbf | 12364492 lbf | 810 kg |
29317 E | 85 mm | 150 mm | 39 mm | 134 mm | Steel | 85427 lbf | 238297 lbf | 2.75 kg |
29318 E | 90 mm | 155 mm | 39 mm | 138 mm | Steel | 89924 lbf | 242794 lbf | 2.85 kg |
29320 E | 100 mm | 170 mm | 42 mm | 152 mm | Steel | 104536 lbf | 290004 lbf | 3.65 kg |
29322 E | 110 mm | 190 mm | 48 mm | 171 mm | Steel | 137133 lbf | 388919 lbf | 5.3 kg |
29324 E | 120 mm | 210 mm | 54 mm | 188 mm | Steel | 171979 lbf | 476595 lbf | 7.35 kg |
29326 E | 130 mm | 225 mm | 58 mm | 203 mm | Steel | 19446 lbf | 562022 lbf | 9 kg |
29328 E | 140 mm | 240 mm | 60 mm | 216 mm | Steel | 220313 lbf | 640705 lbf | 10.5 kg |
29330 E | 150 mm | 250 mm | 60 mm | 223 mm | Steel | 224809 lbf | 640705 lbf | 11 kg |
29332 E | 160 mm | 270 mm | 67 mm | 243 mm | Steel | 265275 lbf | 775591 lbf | 14.5 kg |
29334 E | 170 mm | 280 mm | 67 mm | 251 mm | Steel | 269771 lbf | 798072 lbf | 15 kg |
29336 E | 180 mm | 300 mm | 73 mm | 270 mm | Steel | 321477 lbf | 966678 lbf | 19.5 kg |
29338 E | 190 mm | 320 mm | 78 mm | 285 mm | Steel | 366439 lbf | 1067842 lbf | 23.5 kg |
29340 E | 200 mm | 340 mm | 85 mm | 304 mm | Steel | 418145 lbf | 1236449 lbf | 28.4 kg |
29344 E | 220 mm | 360 mm | 85 mm | 326 mm | Steel | 449618 lbf | 1416296 lbf | 31.2 kg |
29348 E | 240 mm | 380 mm | 85 mm | 345 mm | Steel | 45861 lbf | 1472499 lbf | 35.5 kg |
29352 E | 260 mm | 420 mm | 95 mm | 382 mm | Steel | 573263 lbf | 1865914 lbf | 49 kg |
29356 E | 280 mm | 440 mm | 95 mm | 401 mm | Steel | 573263 lbf | 1944597 lbf | 53 kg |
29360 E | 300 mm | 480 mm | 109 mm | 434 mm | Steel | 696908 lbf | 2382975 lbf | 75 kg |
29364 E | 320 mm | 500 mm | 109 mm | 454 mm | Steel | 75311 lbf | 251786 lbf | 78 kg |
29368 | 340 mm | 540 mm | 122 mm | 520 mm | Steel | 609232 lbf | 2472898 lbf | 105 kg |
29372 | 360 mm | 560 mm | 122 mm | 540 mm | Steel | 620473 lbf | 2607784 lbf | 110 kg |
29376 | 380 mm | 600 mm | 132 mm | 580 mm | Steel | 750862 lbf | 3147325 lbf | 140 kg |
29380 | 400 mm | 620 mm | 132 mm | 596 mm | Steel | 775591 lbf | 3282211 lbf | 150 kg |
29384 | 420 mm | 650 mm | 140 mm | 626 mm | Steel | 840785 lbf | 3596943 lbf | 170 kg |
29388 EM | 440 mm | 680 mm | 145 mm | 626 mm | Steel | 1169007 lbf | 4338813 lbf | 180 kg |
29392 | 460 mm | 710 mm | 150 mm | 685 mm | Steel | 968927 lbf | 427137 lbf | 215 kg |
294/1000 EF | 1000 mm | 1670 mm | 402 mm | 1531 mm | Steel | 6991558 lbf | 31473252 lbf | 3383 kg |
294/1060 EF | 1060 mm | 1770 mm | 426 mm | 1615 mm | Steel | 7508619 lbf | 35070195 lbf | 4280 kg |
294/500 EM | 500 mm | 870 mm | 224 mm | 795 mm | Steel | 210646 lbf | 8992358 lbf | 560 kg |
294/530 EM | 530 mm | 920 mm | 236 mm | 840 mm | Steel | 2360494 lbf | 9891594 lbf | 650 kg |
294/560 EM | 560 mm | 980 mm | 250 mm | 890 mm | Steel | 2697707 lbf | 11465256 lbf | 810 kg |
294/600 EM | 600 mm | 1030 mm | 258 mm | 940 mm | Steel | 2944997 lbf | 12589301 lbf | 845 kg |
294/630 EM | 630 mm | 1090 mm | 280 mm | 995 mm | Steel | 3237249 lbf | 13938155 lbf | 1040 kg |
294/670 EM | 670 mm | 1150 mm | 290 mm | 1045 mm | Steel | 3462058 lbf | 15287008 lbf | 1210 kg |
294/710 EF | 710 mm | 1220 mm | 308 mm | 1110 mm | Steel | 3956637 lbf | 17197884 lbf | 1500 kg |
294/750 EF | 750 mm | 1280 mm | 315 mm | 1170 mm | Steel | 4203927 lbf | 1910876 lbf | 1650 kg |
294/800 EF | 800 mm | 1360 mm | 335 mm | 1250 mm | Steel | 4541141 lbf | 20907232 lbf | 2025 kg |
294/850 EF | 850 mm | 1440 mm | 354 mm | 1315 mm | Steel | 5372934 lbf | 24279366 lbf | 2390 kg |
294/900 EF | 900 mm | 1520 mm | 372 mm | 1394 mm | Steel | 6002399 lbf | 27426691 lbf | 2650 kg |
294/950 EF | 950 mm | 1600 mm | 390 mm | 1470 mm | Steel | 6339612 lbf | 29674781 lbf | 3065 kg |
29412 E | 60 mm | 130 mm | 42 mm | 112 mm | Steel | 87675 lbf | 2057 lbf | 2.6 kg |
29413 E | 65 mm | 140 mm | 45 mm | 120 mm | Steel | 102288 lbf | 242794 lbf | 3.2 kg |
29414 E | 70 mm | 150 mm | 48 mm | 129 mm | Steel | 116901 lbf | 281011 lbf | 3.9 kg |
29415 E | 75 mm | 160 mm | 51 mm | 138 mm | Steel | 134885 lbf | 321477 lbf | 4.7 kg |
29416 E | 80 mm | 170 mm | 54 mm | 147 mm | Steel | 150622 lbf | 366439 lbf | 5.6 kg |
29417 E | 85 mm | 180 mm | 58 mm | 155 mm | Steel | 165235 lbf | 404656 lbf | 6.75 kg |
29418 E | 90 mm | 190 mm | 60 mm | 164 mm | Steel | 183219 lbf | 449618 lbf | 7.75 kg |
29420 E | 100 mm | 210 mm | 67 mm | 182 mm | Steel | 220313 lbf | 562022 lbf | 10.5 kg |
29422 E | 110 mm | 230 mm | 73 mm | 199 mm | Steel | 265275 lbf | 674427 lbf | 13.5 kg |
29424 E | 120 mm | 250 mm | 78 mm | 216 mm | Steel | 307988 lbf | 775591 lbf | 17.5 kg |
29426 E | 130 mm | 270 mm | 85 mm | 234 mm | Steel | 350702 lbf | 910476 lbf | 22 kg |
29428 E | 140 mm | 280 mm | 85 mm | 245 mm | Steel | 366439 lbf | 966678 lbf | 23 kg |
29430 E | 150 mm | 300 mm | 90 mm | 262 mm | Steel | 418145 lbf | 1146526 lbf | 28 kg |
29432 E | 160 mm | 320 mm | 95 mm | 279 mm | Steel | 467603 lbf | 125893 lbf | 32 kg |
29434 E | 170 mm | 340 mm | 103 mm | 297 mm | Steel | 530549 lbf | 1472499 lbf | 44.5 kg |
29436 E | 180 mm | 360 mm | 109 mm | 315 mm | Steel | 584503 lbf | 1652346 lbf | 52.5 kg |
29438 E | 190 mm | 380 mm | 115 mm | 332 mm | Steel | 640705 lbf | 1798472 lbf | 60.5 kg |
29440 E | 200 mm | 400 mm | 122 mm | 350 mm | Steel | 719389 lbf | 202328 lbf | 72 kg |
29444 E | 220 mm | 420 mm | 122 mm | 371 mm | Steel | 75311 lbf | 2169406 lbf | 75 kg |
29448 E | 240 mm | 440 mm | 122 mm | 391 mm | Steel | 76435 lbf | 2293051 lbf | 80 kg |
29452 E | 260 mm | 480 mm | 132 mm | 427 mm | Steel | 910476 lbf | 2900035 lbf | 105 kg |
29456 E | 280 mm | 520 mm | 145 mm | 464 mm | Steel | 1101564 lbf | 3439577 lbf | 135 kg |
29460 E | 300 mm | 540 mm | 145 mm | 485 mm | Steel | 1124045 lbf | 3731828 lbf | 140 kg |
29464 E | 320 mm | 580 mm | 155 mm | 520 mm | Steel | 1281411 lbf | 427137 lbf | 175 kg |
29468 E | 340 mm | 620 mm | 170 mm | 557 mm | Steel | 150622 lbf | 503572 lbf | 220 kg |
29472 EM | 360 mm | 640 mm | 170 mm | 580 mm | Steel | 1393815 lbf | 476595 lbf | 230 kg |
29476 EM | 380 mm | 670 mm | 175 mm | 610 mm | Steel | 1528701 lbf | 5395415 lbf | 260 kg |
29480 E | 400 mm | 710 mm | 185 mm | 645 mm | Steel | 1719788 lbf | 5957437 lbf | 310 kg |
29480 EM | 400 mm | 710 mm | 185 mm | 645 mm | Steel | 1719788 lbf | 5957437 lbf | 310 kg |
29484 EM | 420 mm | 730 mm | 185 mm | 665 mm | Steel | 175351 lbf | 6182246 lbf | 325 kg |
29488 EM | 440 mm | 780 mm | 206 mm | 710 mm | Steel | 202328 lbf | 7193886 lbf | 410 kg |
Thrust bearing materials

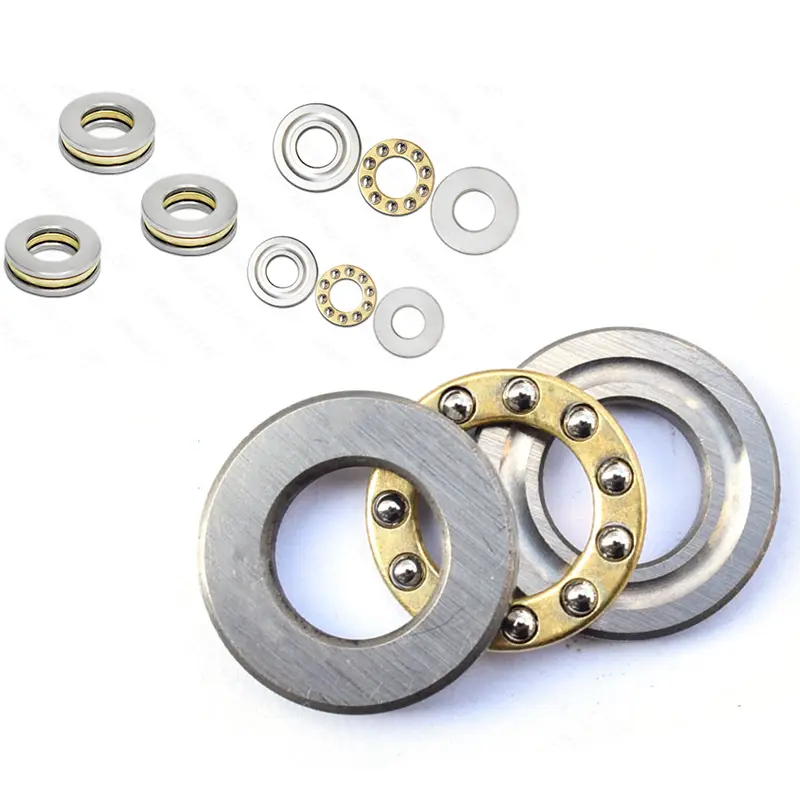

Chromium steel
Chromium steel is an alloy steel containing chromium and has good toughness and wear resistance, so it is often used to manufacture thrust bearings. Chromium steel thrust bearings have the characteristics of large load-bearing capacity and long service life, and are suitable for working in high-speed rotation and high-temperature environments. Common chromium steels include AISI 52100 steel, AISI 8620 steel, etc.

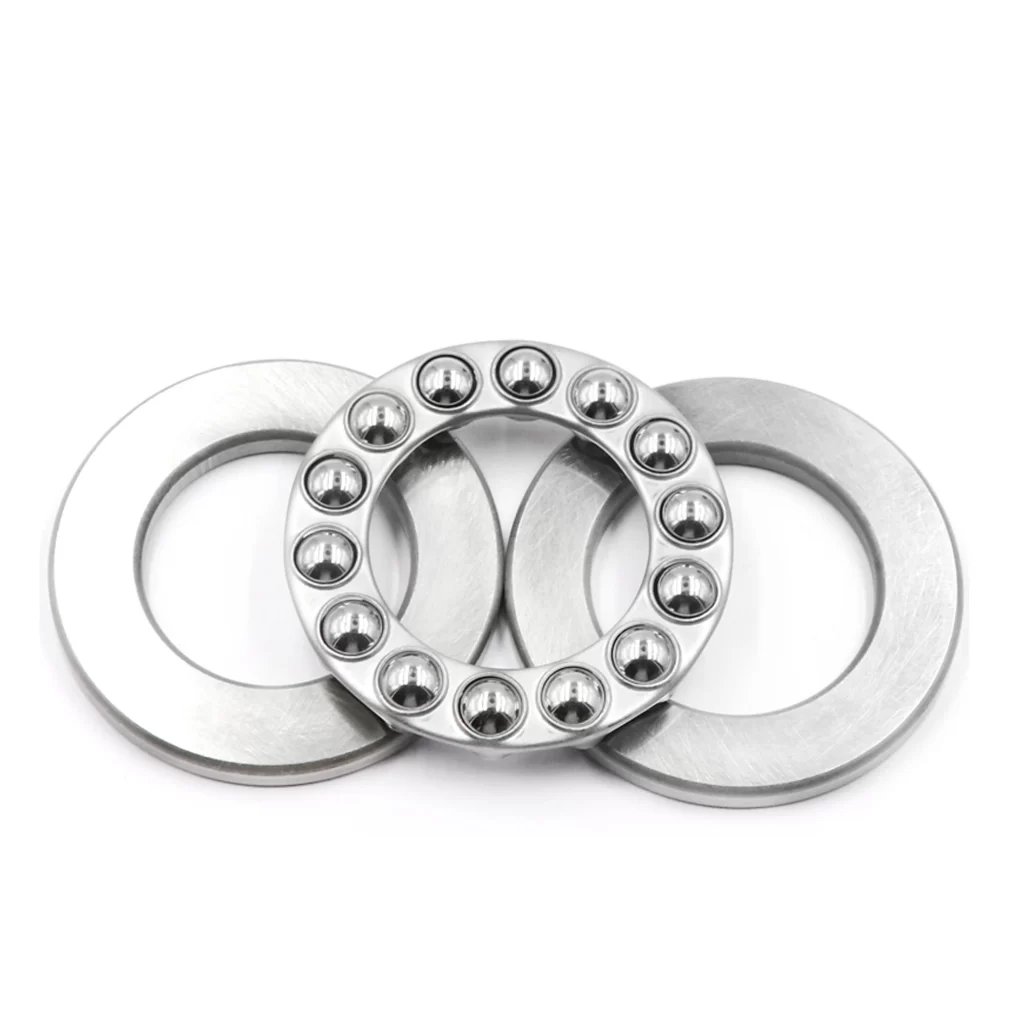

Stainless steel
Stainless steel is an alloy material with good corrosion resistance and is widely used in thrust bearing manufacturing. Thrust bearings made of stainless steel have good intrinsic quality and service life, and can adapt to complex working environments, such as high temperature, low temperature, strong corrosion, etc. Commonly used stainless steel materials include AISI 304, AISI 316, etc.

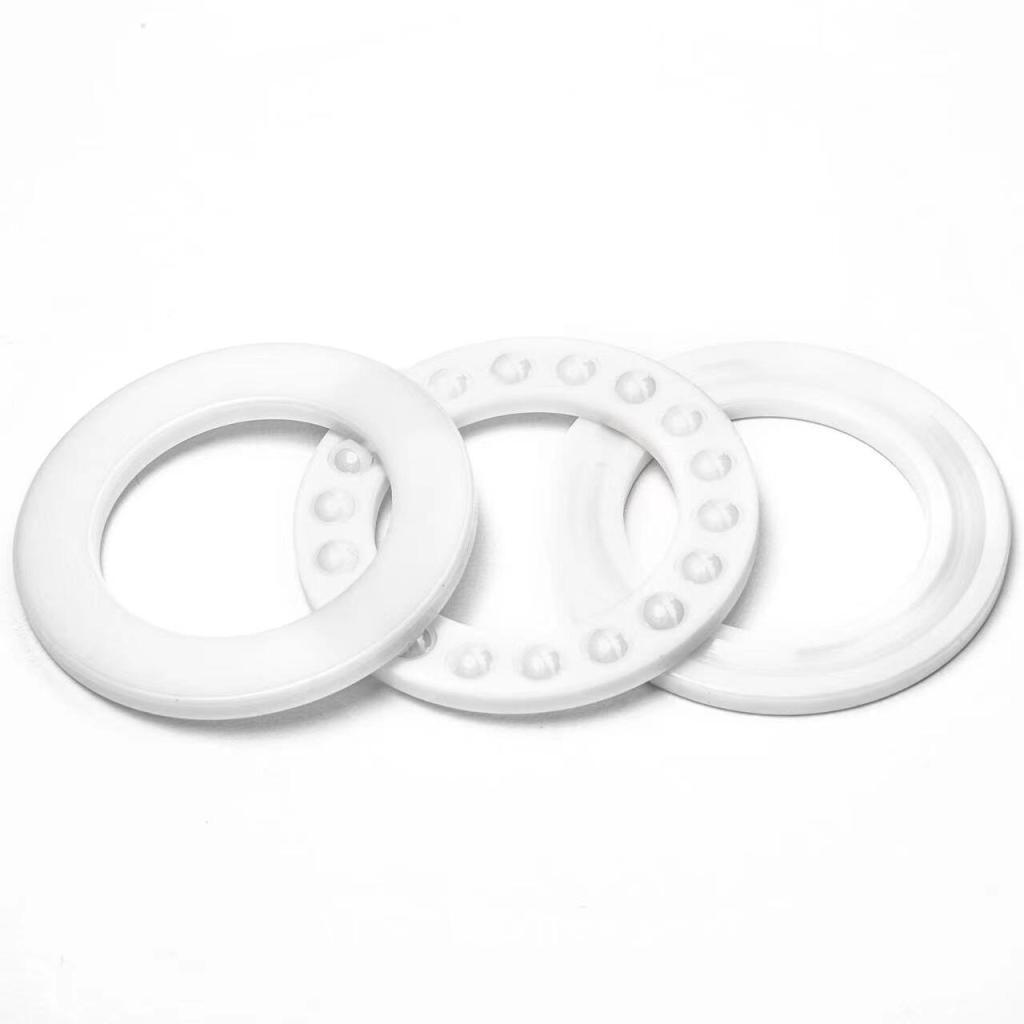

Ceramics
Thrust ball bearings made of ceramic materials have good hardness and high temperature resistance and are suitable for high-speed and efficient mechanical equipment. In addition, because ceramic materials have good wear resistance and fatigue strength, thrust ball bearings can maintain a long service life when used under high load, long-term, and continuous operation conditions.
Thrust ball bearings are made of materials including chromium steel, stainless steel, ceramics, etc. Each material has its own characteristics and scope of application. When actually selecting materials, you need to make comprehensive considerations based on specific needs and choose materials that suit you.
Radial Bearings VS Thrust Bearings
In bearing design, radial and thrust bearings are two common types. Although they are both bearings, they have clear differences in design, application and characteristics. Let’s judge the design features and differences between radial bearings and thrust bearings based on the structure of the bearing product.
Radial bearing
Radial bearing is a common bearing that mainly bears radial load from the shaft. The design of this type of bearing usually includes main components such as outer ring, inner ring, rolling elements and cage. When the rolling elements roll between the outer ring and the inner ring, friction and wear can be reduced, thereby improving the efficiency and life of the mechanical equipment. The main feature of a radial bearing is that it can only bear radial loads and cannot bear axial loads. If the equipment is required to support axial loads, other types of bearings or structural designs are often required, such as thrust bearings or angular contact bearings. The main categories of radial bearings are:
Thrust bearing
Thrust bearings are generally composed of two thrust washers or thrust washers and several rolling elements. Generally, thrust washers are divided into shaft pieces and seat pieces. The most common types of rolling elements are generally made of iron or copper. The cage is combined into a whole. The most common type of bearing is a steel ball thrust bearing.
Radial bearings VS thrust bearings - similar
Both are types of bearings that play a role in supporting and carrying loads during mechanical operation.
Both have different bearing materials, such as bearing steel, ceramic, stainless steel, plastic, etc.
Both have balls and rollers as rolling elements.
Both have bearing seal designs
Both require maintenance and upkeep to ensure proper functioning and longevity.
Both need to consider lubrication issues during use to ensure their operating efficiency and extend their service life.
Radial bearings VS thrust bearings - different
Radial bearings mainly bear radial loads, while thrust bearings mainly bear axial loads.
Radial bearings usually adopt a rolling element and cage structure, while thrust bearings usually adopt a journal and bush structure.
Radial bearings are suitable for high-speed operation and high-precision requirements, while thrust bearings are suitable for heavy loads and shocks.
The maintenance and upkeep of radial bearings is relatively simple, while the maintenance and upkeep of thrust bearings requires complex processes and technical support.
In short, although radial and thrust bearings are both types of bearings, there are obvious differences in design, application and characteristics.
Thrust bearing installation
The fit between the shaft ring and the shaft of the thrust bearing is generally a transition fit, and the fit between the seat ring and the bearing seat hole is generally a clearance fit. Therefore, this kind of bearing is easier to install. The center shaft ring of the two-way thrust bearing should be fixed on the shaft to prevent rotation relative to the axis. When installing a thrust bearing, the verticality of the shaft ring and the shaft centerline should be checked. The method is to fix the dial indicator on the end face of the box shell, so that the contact head of the dial is on the raceway of the bearing shaft ring while rotating the bearing, while observing the dial indicator pointer. If the pointer is deflected, it means that the shaft ring and the center line of the shaft are not perpendicular. When the hole in the box shell is deep, an extended dial indicator can also be used for inspection. When a thrust bearing is installed correctly, its seat ring can automatically adapt to the rolling of the rolling elements to ensure that the rolling elements are located in the upper and lower raceways. If installed upside down, not only will the bearing not work properly, but also the mating surfaces will be severely worn. Since the difference between the shaft ring and the seat ring is not very obvious, extra care should be taken during assembly to avoid making mistakes. In addition, a gap of 0.2-0.5mm should be left between the thrust bearing seat ring and the bearing seat hole to compensate for errors caused by inaccurate parts processing and installation. When the center of the bearing ring deviates during operation, this gap will This ensures that it adjusts automatically to avoid contact and friction, allowing it to operate normally. Otherwise, severe damage to the bearing will occur.
