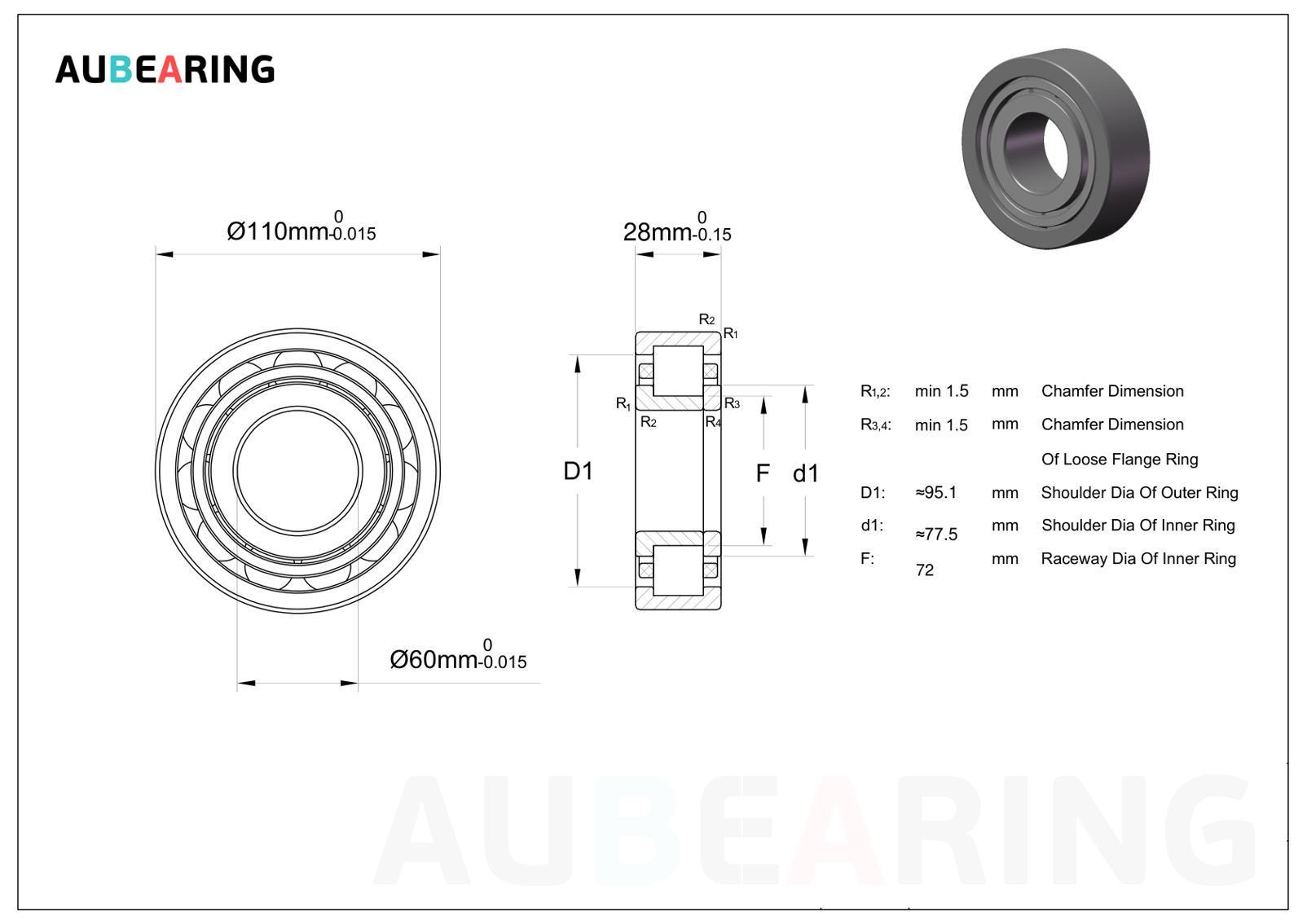

NUP 2212 ECM

Product Attributes

Part Number	NUP 2212 ECM
System of Measurement	Metric
Roller Bearing Type	Cylindrical
For Load Direction	Combined Radial and Thrust
Construction	Single Row
Inner Ring Type	With Inner Ring
Seal Type	Open
Bore Dia	60 mm
Bore Dia Tolerance	-0.15mm to 0
Outer Dia	110 mm
Outer Dia Tolerance	-0.015mm to 0
Width	28 mm
Width Tolerance	-0.15mm to 0
Shoulder Diameter Of Inner Ring	77.5 mm
Shoulder Diameter Of Outer Ring	95.1 mm
Raceway Diameter Of Inner Ring	72 mm
Chamfer Dimension r1,2(min.)	1.5 mm
Chamfer Dimension Of Loose Flange Ring(r3,4)(min.)	1.5 mm
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Cage Material	PA66 cage, roller centred
Dynamic Load Rating	146 kN
Static Load Rating	153 kN
Max Speed (X1000 rpm)	8
Lubrication	Grease, Oil
Temperature Range	-30° to 110 °C
RoHS	Compliant
REACH	Compliant
Weight	1.28 kg
