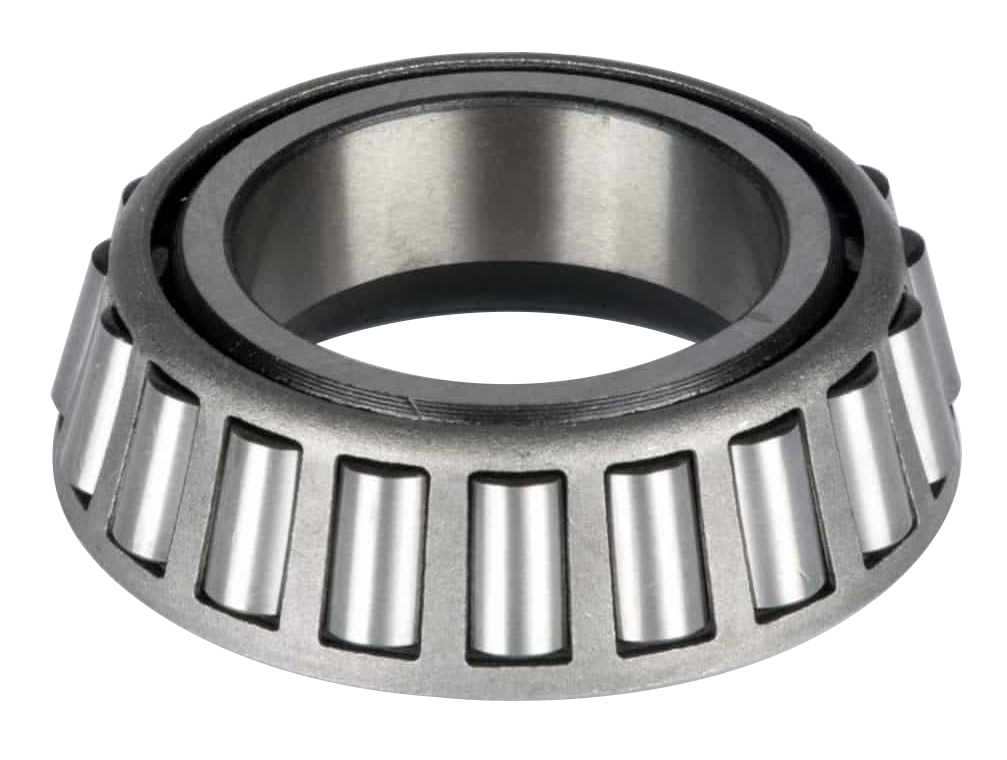

M88046

Product Attributes

Part Number	M88046
Type	Cones
System of Measurement	Inch
Bearing Type	Roller
Roller Bearing Type	Tapered Roller
For Load Direction	Combined Radial and Thrust
Construction	Single Row
Seal Type	Open
Series	M88000
Bore Dia	1.25"
Bore Dia Tolerance	+0.013" to 0
Cone Width	0.875"
Cone Width Tolerance	+0.076" to -0.254"
Cone Backface ToClear Radius	0.06"
Cone Frontface Backing Diameter	1.59"
Cone Backface Backing Diameter	1.69"
Cage Cone Frontface Clearance	0.06"
Cage Cone Backface Clearance	0.05"
Effective Center Location	-0.11"
Ring Material	52100 Chrome Steel
Cage Material	Steel
Dynamic Radial Load	17100 lbf
Static Radial Load	17400 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90)	4450 lbf
Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1)	29900 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90)	4160 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90)	7740 lbf
Temperature Range	-30° to 110 °C
ABEC Rating	ABEC-1
Radial Clearance	Standard (Available in C3/C4/C5)
RoHS	Compliant
REACH	Compliant
