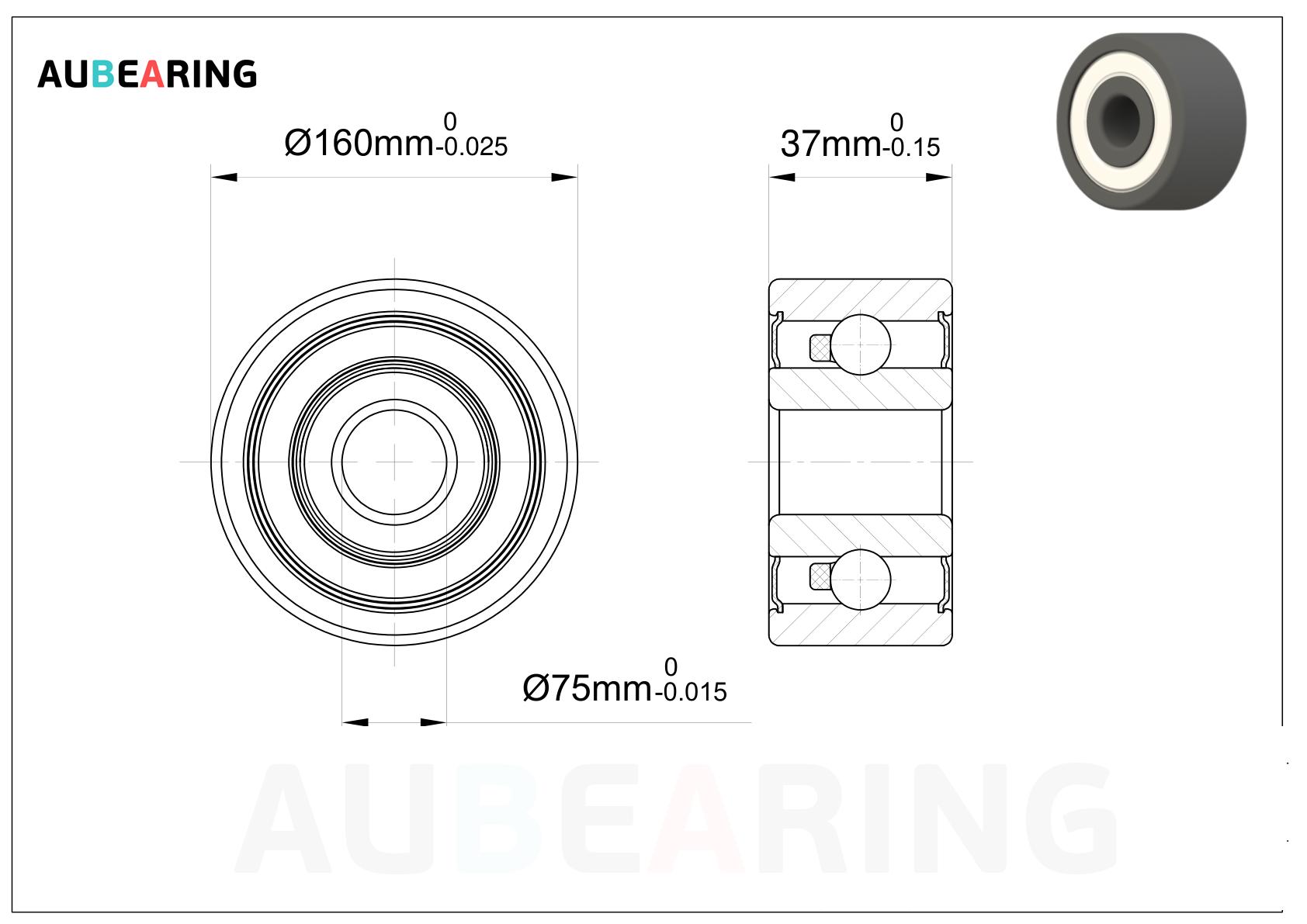

Part Number | CE6315SCPP |
System of Measurement | Metric |
Bearing Type | Ball |
For Load Direction | Radial |
Construction | Single Row |
Seal Type | Sealed |
Bore Dia | 75 mm |
Bore Dia Tolerance | -0.015mm to 0 |
Outer Dia | 160 mm |
Outer Dia Tolerance | -0.025mm to 0 |
Width | 37 mm |
Width Tolerance | -0.150mm to 0 |
Ring Material | Silicon Carbide |
Ball Material | Silicon Carbide Ceramic |
Cage Material | PEEK |
Seals Material | PTFE |
Dynamic Radial Load | 22600 N |
Static Radial Load | 15440 N |
Max Speed (X1000 rpm) | 1.96 |
Lubrication | Without |
Shaft Mount Type | Press Fit |
Temperature Range | -176 to 2192 °F |
ABEC Rating | ABEC-1 |
Radial Clearance Trade No. | C0 |
Radial Clearance | 0.01mm to 0.03mm |
Ball Dia | 26.988mm |
Ball Qty | 8 |
Maximum Temperature | 1200 °C (2192°F) |
RoHS | Compliant |
Weight | 1212.00 g |
