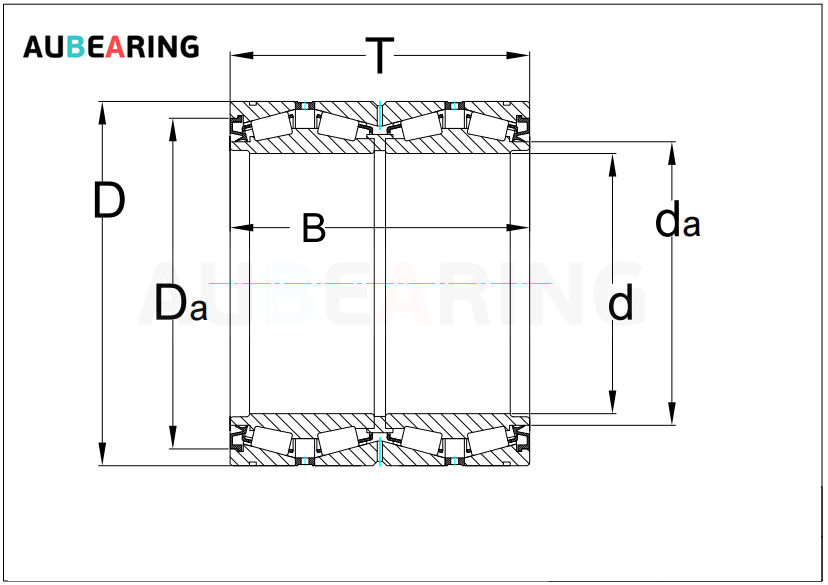

BT4-8070 G/HA1VA901

Product Attributes

Part Number	BT4-8070 G/HA1VA901
Type	Bearing
System of Measurement	Metric
Bearing Type	Roller
Roller Bearing Type	Tapered Roller
For Load Direction	Combined Radial and Thrust
Construction	Four-row
Seal Type	Open
Bore Dia	347.662 mm
Bore Dia Tolerance	-0.04mm to 0
Outer Dia	469.9 mm
Outer Dia Tolerance	-0.045mm to 0
Total Bearing Width Over Inner Rings	292.1 mm
Total Bearing Width Over Inner Rings Tolerance	-0.25mm to 0
Total Bearing Width Over Outer Rings	292.1 mm
Total Bearing Width Over Outer Rings Tolerance	+0.4mm to -0.4mm
Abutment Diameter Shaft	372 mm
Abutment Diameter Housing	372 mm
Chamfer Dimension Inner Ring	min.1.0 mm
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Cage Material	Steel
Dynamic Radial Load	879750 lbf
Static Radial Load	1912500 lbf
Fatigue Load Limit	159750 lbf
Comparative Radial Load Rating	213750 lbf
Comparative Axial Load Rating	34425 lbf
Lubrication	Required
Temperature Range	-30° to 110 °C
ABEC Rating	ABEC-1
Radial Clearance	Standard (Available in C3/C4/C5)
RoHS	Compliant
REACH	Compliant
Weight	299.83 lb
