Part Number | 54307 |
System of Measurement | Metric |
Bearing Type | Ball |
For Load Direction | Thrust |
Seal Type | Open |
Bore Dia | 30 mm |
Bore Dia Tolerance | -0.01mm to 0 |
Outer Dia | 68 mm |
Outer Dia Tolerance | -0.015mm to 0 |
Height | 47.2 mm |
Height Tolerance | +0.15mm to -0.4mm |
Chamfer Dimension Housing Washer | 1 mm |
Chamfer Dimension Shaft Washer | 0.3 mm |
Inner Dia Housing Washer | 37 mm |
Washer Material | 52100 Chrome Steel |
Ball Material | 52100 Chrome Steel |
Cage Material | Steel |
Dynamic Thrust Load | 11106 lbf |
Static Thrust Load | 21694 lbf |
Max Speed (X1000 rpm) | 3.4 |
Temperature Range | -30° to 110 °C |
RoHS | Compliant |
REACH | Compliant |
Weight | 0.85 kg |

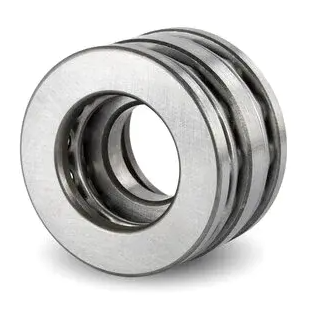

54307 Double Direction Thrust Ball Bearings are a kind of separation bearings. 54307 bore dia is 30 mm. Its out dia is 68 mm. 54307 ball material is 52100 Chrome Steel. Its seal type is Open. 54307 Double Direction Thrust Ball Bearings are designed to bear thrust loads while operating at high speeds.
Automobiles, Motors, Electrical Appliances, Furniture, Packaging Machinery, Food Chemical Machinery, Fitness Equipment, Construction Machinery, Medical Instruments, Printing Machinery, Machine Tools, Flow Meters, Robotics Industry, Gas Meters, Anemometer, Crane hook, Oil rig, Rolling mill roll neck, etc.
Several factors must be considered for choosing Double Direction Thrust Ball Bearings. These factors include the ring material, design, shields and seals, cage, Annual Bearing Engineering Committee (ABEC) grade, axial loads, and lubricant, etc.
