| Part Number | 52228 |
| System of Measurement | Metric |
| Bearing Type | Ball |
| For Load Direction | Thrust |
| Seal Type | Open |
| Bore Dia | 120 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 200 mm |
| Outer Dia Tolerance | -0.03mm to 0 |
| Height | 81 mm |
| Height Tolerance | +0.2mm to -0.5mm |
| Chamfer Dimension Housing Washer | 1.5 mm |
| Chamfer Dimension Shaft Washer | 1.1 mm |
| Inner Dia Housing Washer | 143 mm |
| Washer Material | 52100 Chrome Steel |
| Ball Material | 52100 Chrome Steel |
| Cage Material | Steel |
| Dynamic Thrust Load | 48559 lbf |
| Static Thrust Load | 150622 lbf |
| Max Speed (X1000 rpm) | 1.4 |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 8.65 kg |

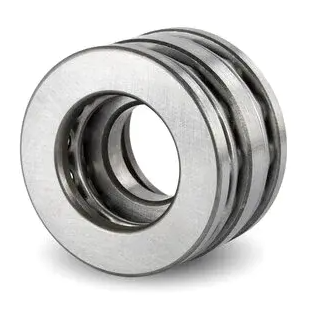

52228 Double Direction Thrust Ball Bearings are a kind of separation bearings. 52228 bore dia is 120 mm. Its out dia is 200 mm. 52228 ball material is 52100 Chrome Steel. Its seal type is Open. 52228 Double Direction Thrust Ball Bearings are designed to bear thrust loads while operating at high speeds.
Automobiles, Motors, Electrical Appliances, Furniture, Packaging Machinery, Food Chemical Machinery, Fitness Equipment, Construction Machinery, Medical Instruments, Printing Machinery, Machine Tools, Flow Meters, Robotics Industry, Gas Meters, Anemometer, Crane hook, Oil rig, Rolling mill roll neck, etc.
Several factors must be considered for choosing Double Direction Thrust Ball Bearings. These factors include the ring material, design, shields and seals, cage, Annual Bearing Engineering Committee (ABEC) grade, axial loads, and lubricant, etc.
