Product Attributes
Part Number52210
System of MeasurementMetric
Bearing TypeBall
For Load DirectionThrust
Seal TypeOpen
Bore Dia40 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia78 mm
Outer Dia Tolerance-0.015mm to 0
Height39 mm
Height Tolerance+0.15mm to -0.4mm
Chamfer Dimension Housing Washer1 mm
Chamfer Dimension Shaft Washer0.6 mm
Inner Dia Housing Washer52 mm
Washer Material52100 Chrome Steel
Ball Material52100 Chrome Steel
Cage MaterialSteel
Dynamic Thrust Load11106 lbf
Static Thrust Load26078 lbf
Max Speed (X1000 rpm)3.4
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Weight0.71 kg
blank

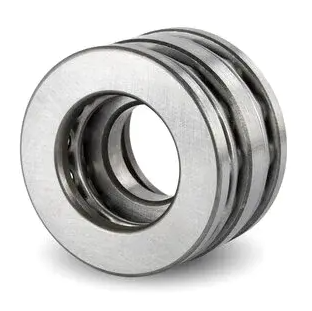

52210 Double Direction Thrust Ball Bearings are a kind of separation bearings. 52210 bore dia is 40 mm. Its out dia is 78 mm. 52210 ball material is 52100 Chrome Steel. Its seal type is Open. 52210 Double Direction Thrust Ball Bearings are designed to bear thrust loads while operating at high speeds. More Typical applications include: Automobiles, Motors, Electrical Appliances, Furniture, Packaging Machinery, Food Chemical Machinery, Fitness Equipment, Construction Machinery, Medical Instruments, Printing Machinery, Machine Tools, Flow Meters, Robotics Industry, Gas Meters, Anemometer, Crane hook, Oil rig, Rolling mill...

52210 Double Direction Thrust Ball Bearings are a kind of separation bearings. 52210 bore dia is 40 mm. Its out dia is 78 mm. 52210 ball material is 52100 Chrome Steel. Its seal type is Open. 52210 Double Direction Thrust Ball Bearings are designed to bear thrust loads while operating at high speeds.

Typical applications include:

Automobiles, Motors, Electrical Appliances, Furniture, Packaging Machinery, Food Chemical Machinery, Fitness Equipment, Construction Machinery, Medical Instruments, Printing Machinery, Machine Tools, Flow Meters, Robotics Industry, Gas Meters, Anemometer, Crane hook, Oil rig, Rolling mill roll neck, etc.

General Selection Factors

Several factors must be considered for choosing Double Direction Thrust Ball Bearings. These factors include the ring material, design, shields and seals, cage, Annual Bearing Engineering Committee (ABEC) grade, axial loads, and lubricant, etc.

Aubearing is an ISO certified Chinese bearing manufacturer and supplier. Competitive prices, 1,200,000+ SKU inventory, including internationally renowned brands such as SKF, Timken, Schaeffler (FAG, INA), NSK, KOYO, NTN, McGill, etc. Aubearing has invested in 300+ equipment, heat treatment facilities, lathes, grinders, milling machines, bearing production lines, CMMs, metallographic testers, etc. Leading Time<7 Days, MOQ=1.

Various types of ball bearings and roller bearings, size range: 1mm-2000mm. Including thin section bearings (KAYDON equivalents and 67, 68, 69 series), ceramic bearings, stainless steel bearings, deep groove ball bearings, angular contact bearings, thrust ball bearings, spherical roller bearings, cylindrical roller bearings, needle roller bearings, tapered roller bearings, precision crossed roller bearings, bushings (sleeve bearings), linear bearings, automotive wheel hub bearings and corresponding inch series.

Customization options: material (Gcr15, silicon nitride, silicon carbide, zirconium oxide, aluminum oxide, stainless steel 304, 316, 420, 440, PTFE\PEEK\nylon and other plastics), cage (brass, stamping steel, retainer), lubrication (lubricating oil, grease, high temperature resistance), clearance (C2\CN\C3\C4\C5), seal (nitrile rubber, silicone rubber, fluororubber, polypropylene rubber), shielding, etc.
