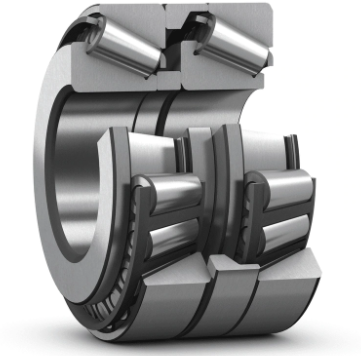

32324/DF

Product Attributes

Part Number	32324/DF
Type	Bearing
System of Measurement	Metric
Bearing Type	Roller
Roller Bearing Type	Tapered Roller
For Load Direction	Combined Radial and Thrust
Construction	Matched
Seal Type	Open
Cups Type	Standard
Bore Dia	120 mm
Bore Dia Tolerance	-0.02mm to 0
Outer Dia	260 mm
Outer Dia Tolerance	-0.035mm to 0
Total Width	181 mm
Total Width Tolerance	+0.35mm to -0.25mm
Width Of Inner Rings	172 mm
Width Of Inner Rings Tolerance	-0.15mm to 0
Width Of Lubrication Groove	21 mm
Diameter Of Lubrication Hole	7.5 mm
Chamfer Dimension Inner Ring	min.1 mm
Chamfer Dimension Outer Ring	min.3 mm
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Cage Material	Steel
Abutment Diameter Shaft	148 mm
Abutment Diameter Housing	148 mm
Radius Of Fillet	max.4 mm
Reference Speed	1600 r/min
Limiting Speed	2600 r/min
Dynamic Radial Load	329850 lbf
Static Radial Load	504000 lbf
Fatigue Load Limit	49500 lbf
Lubrication	Required
Temperature Range	-30° to 110 °C
ABEC Rating	ABEC-1
Radial Clearance	Standard (Available in C3/C4/C5)
RoHS	Compliant
REACH	Compliant
Weight	99.43 lb
