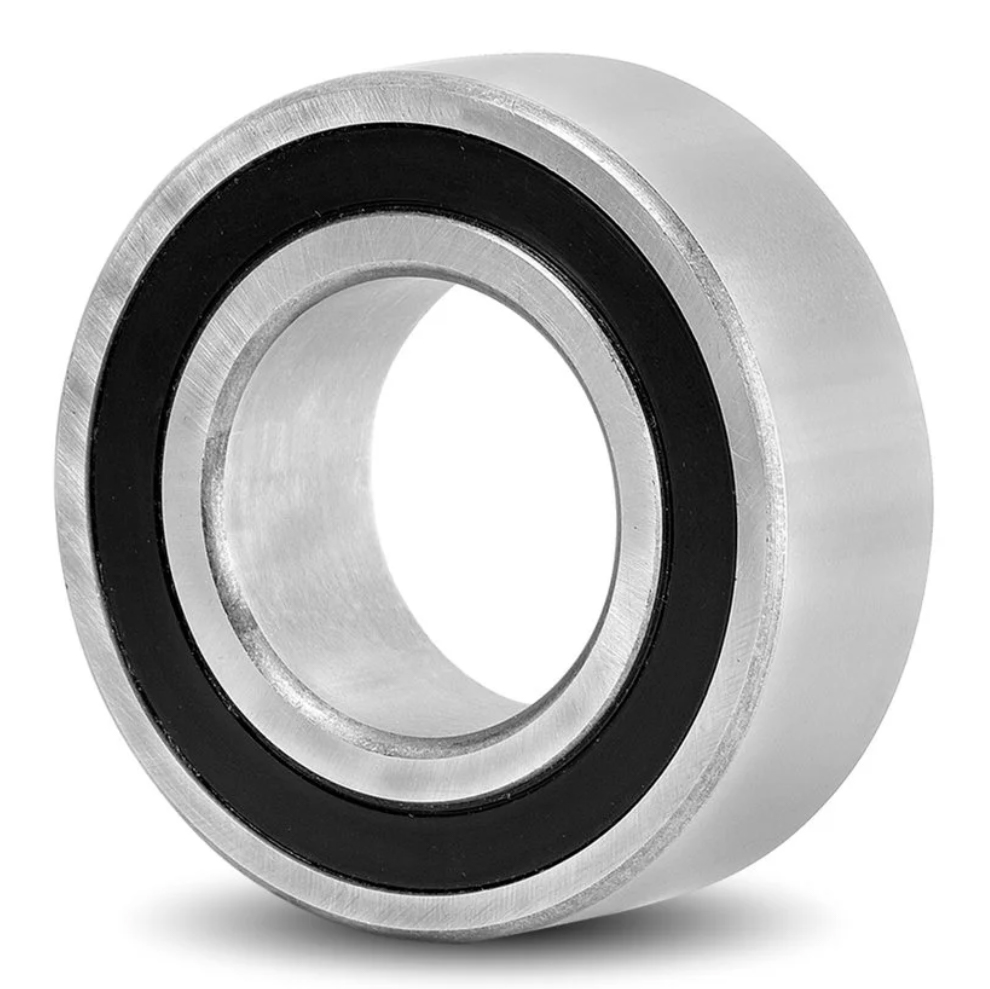

3205 A-2RS1

Product Attributes

Part Number	3205 A-2RS1
Interchange	5205 2rs
System of Measurement	Metric
Bearing Type	Ball
Internal Design	High Speed
For Load Direction	Combined Radial and Thrust
Construction	Double Row
Seal Type	Sealed
Bore Dia	25 mm
Bore Dia Tolerance	-0.008mm to 0
Outer Dia	52 mm
Outer Dia Tolerance	-0.011mm to 0
Width	20.6 mm
Width Tolerance	-0.05mm to 0
Chamfer Dimension (r1 2)(min)	1 mm
Distance Pressure Point (a)	30 mm
Ring Material	52100 Chrome Steel
Ball Material	52100 Chrome Steel
Cage Material	Steel Cage
Dynamic Radial Load	22 kN
Static Radial Load	15.3 kN
Max Speed (X1000 rpm)	8.5
Lubrication	Lubricated
Temperature Range	-30° to 110 °C
ABEC Rating	P6 (ABEC-3)
ROHS	Compliant
REACH	Compliant
Weight	0.18 kg

AUB Bearing Company is a manufacturer of various types of bearings, including deep groove ball bearings, thin section bearings, angular contact ball bearings, cylindrical roller bearings, tapered roller bearings, and spherical roller bearings. AUB's bearings are used in a wide range of applications, including automotive, wind energy, railway, mining, agriculture, and construction machinery. Our company's bearings are known for their high-performance, durability, and long service life.

AUB Bearing Company has a strong focus on research and development and invests heavily in new technologies and processes. The company's goal is to provide high-quality bearings that meet or exceed customer expectations in terms of performance, reliability, and durability.AUB offers customized bearing manufacturing solutions to meet the specific needs of its customers. The company has a team of experienced engineers who can design and develop bearings to meet specific requirements, such as high-speed, high-temperature, or corrosive environments.

AUB has a strong quality control system and follows rigorous testing procedures to ensure that its bearings meet international standards. The company has received certifications such as ISO 9001, ISO/TS 16949, and ISO 14001.

If you have any questions, please feel free to contact our bearing experts. 7*24 service for you. Email: info@aubearing.com.

Aubearing is an ISO certified Chinese bearing manufacturer and supplier. Competitive prices, 1,200,000+ SKU inventory, including internationally renowned brands such as SKF, Timken, Schaeffler (FAG, INA), NSK, KOYO, NTN, McGill, etc. Aubearing has invested in 300+ equipment, heat treatment facilities, lathes, grinders, milling machines, bearing production lines, CMMs, metallographic testers, etc. Leading Time<7 Days, MOQ=1.

Bearing Catalogue

Various types of ball bearings and roller bearings, size range: 1mm-2000mm. Including thin section bearings (KAYDON equivalents and 67, 68, 69 series), ceramic bearings, stainless steel bearings, deep groove ball bearings, angular contact bearings, thrust ball bearings, spherical roller bearings, cylindrical roller bearings, needle roller bearings, tapered roller bearings, precision crossed roller bearings, bushings (sleeve bearings), linear bearings, automotive wheel hub bearings and corresponding inch series.

Customization options: material (Gcr15, silicon nitride, silicon carbide, zirconium oxide, aluminum oxide, stainless steel 304, 316, 420, 440, PTFE\PEEK\nylon and other plastics), cage (brass, stamping steel, retainer), lubrication (lubricating oil, grease, high temperature resistance), clearance (C2\CN\C3\C4\C5), seal (nitrile rubber, silicone rubber, fluororubber, polypropylene rubber), shielding, etc.
