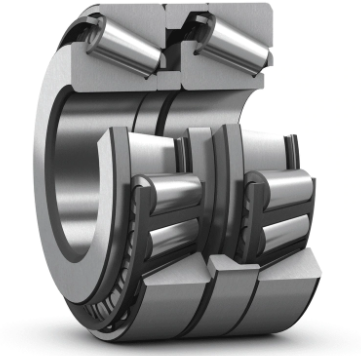

31317/DF

Product Attributes

Part Number	31317/DF
Type	Bearing
System of Measurement	Metric
Bearing Type	Roller
Roller Bearing Type	Tapered Roller
For Load Direction	Combined Radial and Thrust
Construction	Matched
Seal Type	Open
Cups Type	Standard
Bore Dia	85 mm
Bore Dia Tolerance	-0.02mm to 0
Outer Dia	180 mm
Outer Dia Tolerance	-0.025mm to 0
Total Width	89 mm
Total Width Tolerance	+0.35mm to -0.25mm
Width Of Inner Rings	82 mm
Width Of Inner Rings Tolerance	-0.15mm to 0
Width Of Lubrication Groove	15 mm
Diameter Of Lubrication Hole	10 mm
Chamfer Dimension Inner Ring	min.1 mm
Chamfer Dimension Outer Ring	min.3 mm
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Cage Material	Steel
Abutment Diameter Shaft	104 mm
Abutment Diameter Housing	104 mm
Radius Of Fillet	max.4 mm
Reference Speed	2200 r/min
Limiting Speed	3800 r/min
Dynamic Radial Load	114750 lbf
Static Radial Load	128250 lbf
Fatigue Load Limit	14400 lbf
Lubrication	Required
Temperature Range	-30° to 110 °C
ABEC Rating	ABEC-1
Radial Clearance	Standard (Available in C3/C4/C5)
RoHS	Compliant
REACH	Compliant
Weight	21.80 lb
