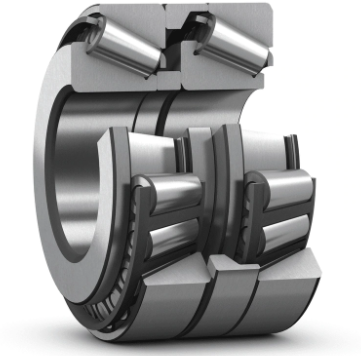

30224/DF

Product Attributes

Part Number	30224/DF
Type	Bearing
System of Measurement	Metric
Bearing Type	Roller
Roller Bearing Type	Tapered Roller
For Load Direction	Combined Radial and Thrust
Construction	Matched
Seal Type	Open
Cups Type	Standard
Bore Dia	120 mm
Bore Dia Tolerance	-0.02mm to 0
Outer Dia	215 mm
Outer Dia Tolerance	-0.03mm to 0
Total Width	87 mm
Total Width Tolerance	+0.35mm to -0.25mm
Width Of Inner Rings	80 mm
Width Of Inner Rings Tolerance	-0.15mm to 0
Width Of Lubrication Groove	10 mm
Diameter Of Lubrication Hole	7.5 mm
Chamfer Dimension Inner Ring	min.1 mm
Chamfer Dimension Outer Ring	min.2.5 mm
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Cage Material	Steel
Abutment Diameter Shaft	141 mm
Abutment Diameter Housing	141 mm
Radius Of Fillet	max.3 mm
Reference Speed	2000 r/min
Limiting Speed	3000 r/min
Dynamic Radial Load	161100 lbf
Static Radial Load	205875 lbf
Fatigue Load Limit	22050 lbf
Lubrication	Required
Temperature Range	-30° to 110 °C
ABEC Rating	ABEC-1
Radial Clearance	Standard (Available in C3/C4/C5)
RoHS	Compliant
REACH	Compliant
Weight	28.00 lb
