2308 E-2RS1TN9

Product Attributes

Part Number	2308 E-2RS1TN9
System of Measurement	Metric
Bearing Type	Ball
For Load Direction	Radial
Construction	Double Row
Seal Type	Sealed

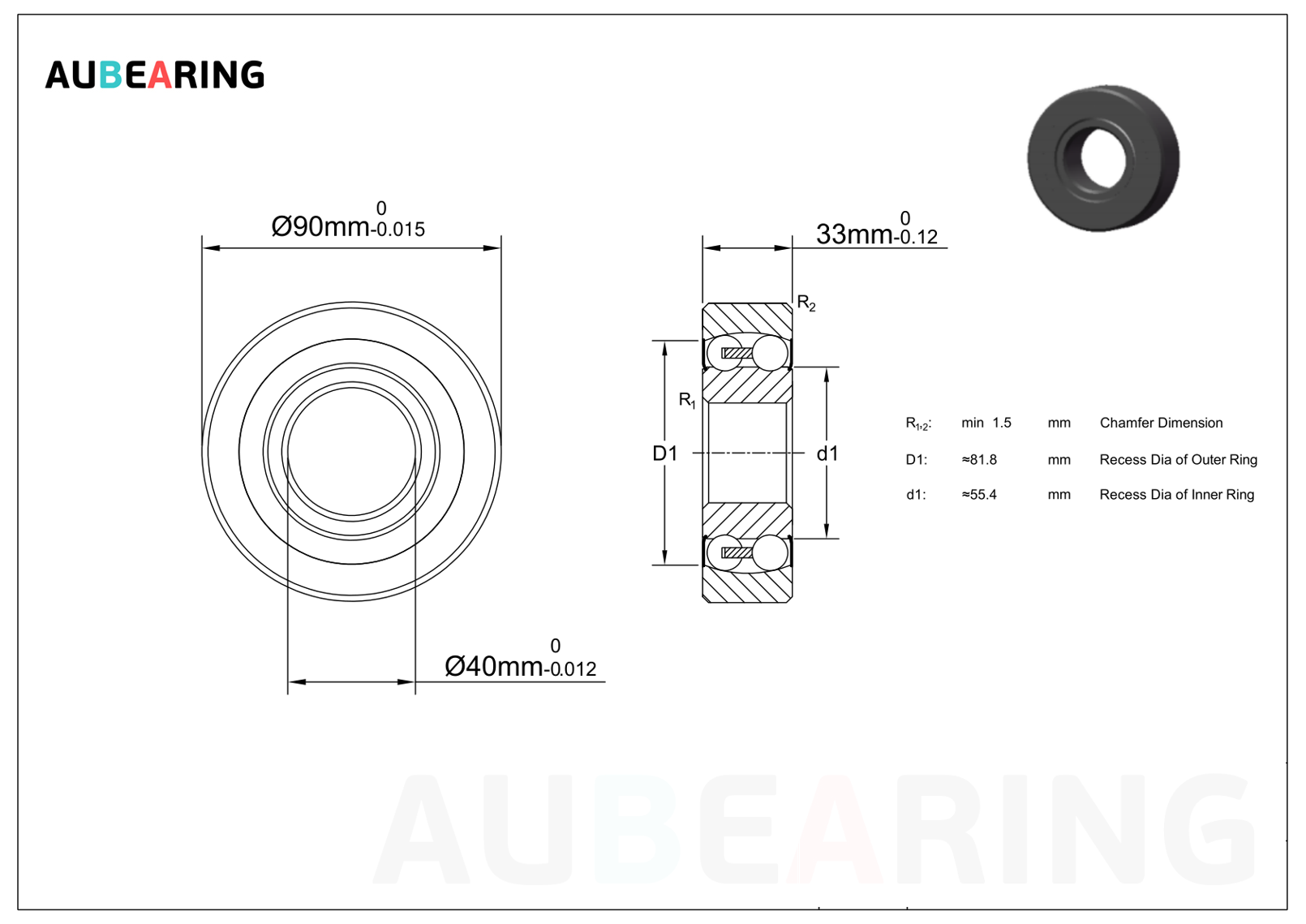

Bore Dia	40 mm
Bore Dia Tolerance	-0.012mm to 0
Outer Dia	90 mm
Outer Dia Tolerance	-0.015mm to 0
Width	33 mm
Width Tolerance	-0.12mm to 0
Recess Dia Of Inner Ring	55.4 mm
Recess Dia Of Outer Ring	81.8 mm
Chamfer Dimension	1.5 mm
Ring Material	52100 Chrome Steel
Ball Material	52100 Chrome Steel
Cage Material	PA66 Nylon
Dynamic Radial Load	33.8 kN
Static Radial Load	11.2 kN
Max Speed (X1000 rpm)	4.8
Lubrication	Lubricated
Temperature Range	-30° to 110 °C
RoHS	Compliant
REACH	Compliant
Weight	0.96 kg
